SMC MHSJ3-25D Gripper
- SKU:
- MHSJ3-25D
- Condition:
- New
- Bore Size:
- 25mm
- Port Thread:
- Bore 16-63= M Thread
- Bore 80:
- Rc
- Dust Cover:
- Chloroprene Rubber
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Suffix for Auto Switch:
- 2 pcs (Or None in the Case of No Switch)
Description

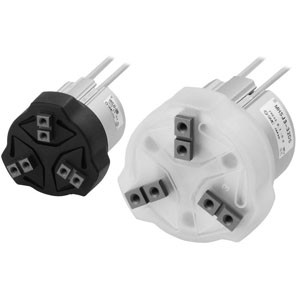

MHSJ3, Air Gripper, 3 Finger, w/Dust Cover
The MHSJ3 Series, 3-finger grippers adds a dust cover to protect from the work environment. These are optimal for gripping spherical, cylindrical or round work pieces and loading or unloading of work pieces from the chuck of a machine tool. Its wedge cam design minimizes its overall size while retaining a high holding force making it suitable for end-of-arm (end effector) or space constrained pick and place applications.
- Double acting, wedge cam- High repeatability: 0.01 mm
- Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80 mm
- Dust cover: chloroprene rubber (CR), fluororubber (FKM), silicone rubber (Si)
- Option for NSF-H1, food grade lubricant
-
