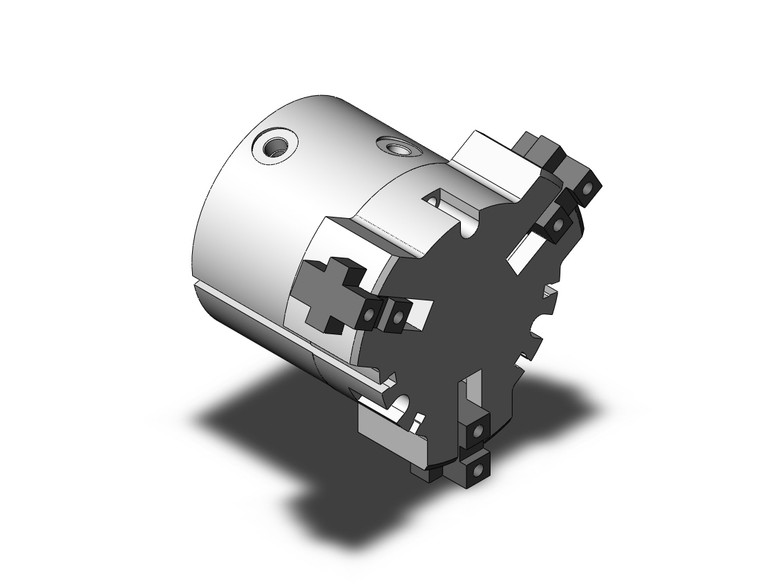

SMC MHSL3-80D Gripper
- SKU:
- MHSL3-80D
- Condition:
- New
- Availability:
- In stock: 10
- Bore Size:
- 80mm
- Port Thread:
- 32-63mm: M Thread, 80-125mm: Rc
- Auto Switch:
- No Switch
Description
MHSL3, Air Gripper, 3 Finger, Long Stroke (Bore 32~125)
The MHSL3 Series, the long stroke, 3-finger grippers are optimal for gripping a wide diameter range of spherical, cylindrical or round work pieces and loading or unloading of work pieces from the chuck of a machine tool. Its wedge cam design minimizes its overall size while retaining a high holding force making it suitable for end-of-arm (end effector) or space constrained pick and place applications.
- Double acting, wedge cam- High repeatability: 0.01 mm
- Bore sizes: 32, 40, 50, 63, 80, 100, 125 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
-
