SMC MHZJ2-20DF Gripper
- SKU:
- MHZJ2-20DF
- Condition:
- New
- Availability:
- In stock: 23
- Made-to-Order:
- Standard
- Auto Switch:
- No Switch
- Dust Cover:
- Fluoro Rubber FKM
- Body Option:
- Basic Style
- Action:
- Double Acting
- Bore Size:
- 20mm
Description

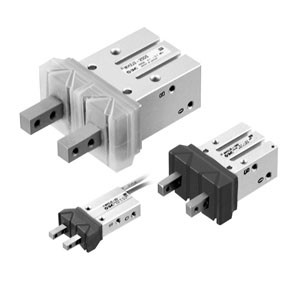

MHZJ2, Air Gripper, Parallel Type, With Dust Cover
The MHZ2 Series gripper has an integrated linear guide for high rigidity, positioned with two dowel pins to prevent guide slippage. It has mounting versatility on three sides, in five configurations. Available in single acting (N.O., N.C.) and double acting.
- Bore sizes: 6, 10, 16, 20, 25 mm- High repeatability: 0.01 mm
- Dust covers: chloroprene rubber, fluororubber, silicone rubber
- Option for NSF-H1, food grade lubricant
- Auto switch capable
-
