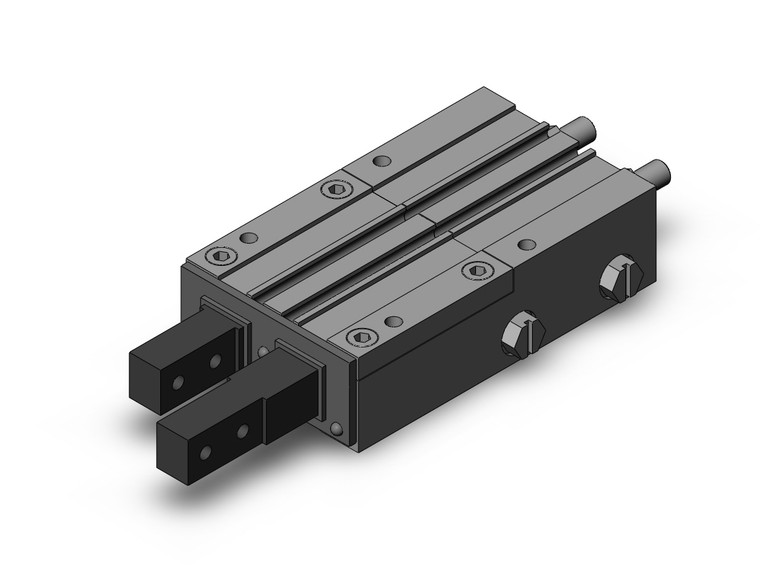

SMC MIW12-12DAS Escapement, Dbl Finger

(No reviews yet) Write a Review
SKU:
MIW12-12DAS
Condition:
New
Availability:
In stock: 21
$276.30

Description

MIW, Escapement, 2 Finger Type

The MIW is a two-finger, slider guide cylinder with sequentially operating fingers making it an effective addition to conveyors, vibratory feeders, magazines and hoppers for separating and feeding individual parts or work pieces on assembly and production lines. An interlocking cam mechanism controls the air passage to the two piston rods, pressuring one while exhausting the other, producing the sequential operation. A floating mechanism separates the fingers from the internal piston allowing for easier finger replacement.
-

- Stroke lengths: 8, 12, 20, 25, 32 mm
- Scraper option
- Stroke adjuster option
- Auto switch capable
- Bore sizes: 8, 12, 20, 25, 32 mm
-

Series Catalog

AutoCAD File

View AllClose

Additional Information

Bore Size:
12mm
Thread:
M Thread:8~25 Bore, Rc: 32 Bore
Stroke:
12mm
Finger Option:
Standard
Stroke Adjusting Unit:
Yes
Scraper:
Yes
Auto Switch:
No Switch
View AllClose

Related Products

<h2>MIW, Escapement, 2 Finger Type</h2><p><h3>The MIW is a two-finger, slider guide cylinder with sequentially operating fingers making it an effective addition to conveyors, vibratory feeders, magazines and hoppers for separating and feeding individual parts or work pieces on assembly and production lines. An interlocking cam mechanism controls the air passage to the two piston rods, pressuring one while exhausting the other, producing the sequential operation. A floating mechanism separates the fingers from the internal piston allowing for easier finger replacement.<br>- </h3>- Stroke lengths: 8, 12, 20, 25, 32 mm<br>- Scraper option<br>- Stroke adjuster option<br>- Auto switch capable<br>- Bore sizes: 8, 12, 20, 25, 32 mm<br>- <p><a href="https://content2.smcetech.com/pdf/MIW_MIS.pdf" target="_blank">Series Catalog</a>

SMC MIW12-12DAS-M9PL Escapement, Dbl Finger

$371.20
MIW, Escapement, 2 Finger TypeThe MIW is a two-finger, slider guide cylinder with sequentially operating fingers making it an effective addition to conveyors, vibratory feeders, magazines and hoppers...
$371.20

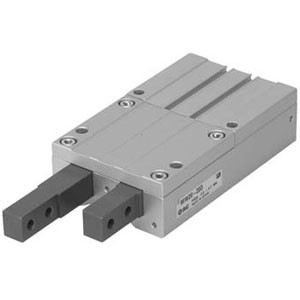

SMC MIW12-12DA-M9PMAPC escapement escapement, dbl finger
