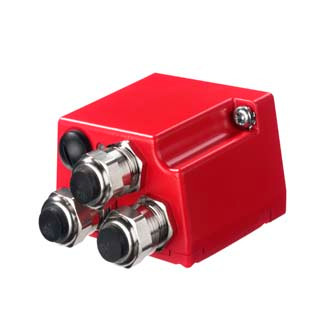

Leuze MK 304 Industrial Sensor System
Leuze
$630.00
The MK 304 is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Communication interface: PROFIBUS DP for direct PLC integration
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model MK 304). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Suitable for:
- BCL 304i,BPS 304i
- Type:
- PROFIBUS DP, PROFIBUS DP
- Number of connections:
- 4 Piece(s)
- Function:
- PWR / SW IN / OUT
- Function:
- HOST / BUS IN
- Function:
- BUS OUT
- Function:
- Service interface
- Type of connection:
- USB
- Design:
- Cubic
- Dimension (W x H x L):
- 64 mm x 83.5 mm x 43.5 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Net weight:
- 186 g
- Housing color:
- Red
- Customs tariff number:
- 84733080
- ECLASS 5.1.4:
- 27280190
- ECLASS 8.0:
- 27280190
- ECLASS 9.0:
- 27279090
- ECLASS 10.0:
- 27280192
- ECLASS 11.0:
- 27280191
- ECLASS 12.0:
- 27280191
- ECLASS 13.0:
- 27280191
- ECLASS 14.0:
- 27280191
- ECLASS 15.0:
- 27280191
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
- Declaration of Conformity:
- View
