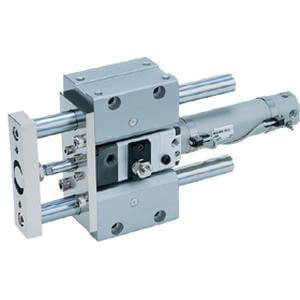

SMC MLGCMB40-100-R-D Guided Cylinder W/Lock
- SKU:
- MLGCMB40-100-R-D
- Condition:
- New
- Bearing Type:
- M (Slide Bearing)
- Mounting:
- B (Basic Style)
- Bore Size:
- 40mm
- Port Thread Type:
- M5X0.8= 20, 25
- Rc:
- 32, 40
- Stroke:
- 100mm
- Rear Plate:
- R (With Rear Plate)
- Lock Operation:
- D (Spring and Pneumatic Locking)
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
the mgc guide cylinder is ideal for material handling applications involving stopping, lifting, and pushing. it combines the functions of a conventional linear cylinder, and a non-rotation device. features include standard air cushions, grease nipple, and switch capability. other features include, slide or ball bushing bearings, compact design, adjustable air cushion, and lightweight guided actuator.
- high level of stopping accuracy three-styles of locking mechanism
- lockable in both directions
- maximum piston speed: 500mm/s
- air cushion provided as standard equipment
- possible to detect the operating position
