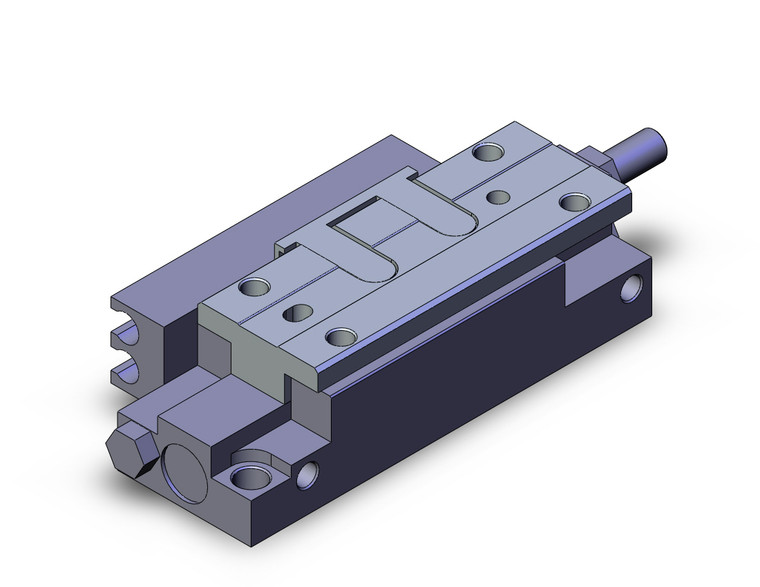

SMC MXP6-10C Guided Cylinder
- SKU:
- MXP6-10C
- Condition:
- New
- Bore Size:
- 6mm
- Stroke:
- 10mm
- Adjuster:
- C (Metal Stopper)
- Magnet:
- Magnet and Rail
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
MXP, High Precision Slide Table (Recirculating Bearings)
The MXP high precision slide tables have travelling parallelism of 0.004 mm for all its bore sizes and non-rotating accuracy +/-0.03 for 6, 8, 10 mm bore siszes and non-rotating accuracy +/-0.04 for 12, 16 mm bore sizes. Its actuator body and guide block are made from Martensitic stainless steel for high rigidity and integrated to guide rails for isolating the load bearing from the movement of the piston rod and seals.
- Bore sizes: 6, 8, 10, 12, 16 mm- Non-rotating accuracy +/-0.03 for 6, 8, 10 mm bore
- Non-rotating accuracy +/-0.04 for 12, 16 mm bore
- Stroke adjuster options: rubber, metal stopper or shock absorber
- PTFE grease or food grade grease option
- RoHS compliant
- Auto switch capable
-
