<h2>Rodless Cylinder, MY1H, Mechanically Jointed, Standard Bores - High Precision Guide</h2><p><h3>The MY1H Rodless Cylinders have a one-piece carriage and piston that runs its entire stroke length housed with an inner seal belt to maintain air pressure combined with an outer dust seal band to protect from contaminants. This design offers a compact footprint compared to rod-style cylinders and features a low profile. The integrated high precision linear guide improves positioning accuracy and repeatability. It also features an end-lock option capable of holding the carriage position at the stroke end. Air cushions are standard and external shock absorbers are optional.</h3>- Bore sizes: 16, 20 mm<br>- Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 mm<br>- Minimum operating pressure: 0.15 MPa (22 psi)<br>- Speed: 100~1000 mm/sec (w/o stroke adjustment bolt), 100~1500 mm/sec (external shock absorber)<br>- Long stroke option: up to 1000 mm (XB11)<br>- Auto switch capable<br>- <p><a href="https://content2.smcetech.com/pdf/MY1.pdf" target="_blank">Series Catalog</a>

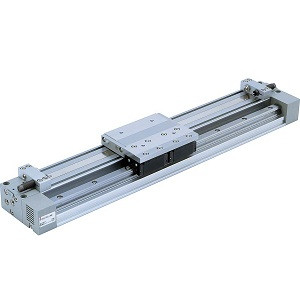

SMC MY1H16G-200 MY1H Mechanically Jointed Rodless Cylinder, Linear Guide, 16 mm Bore, 200 mm Stroke

SMC
SKU:
MY1H16G-200
$458.50
Condition:
New
Current Stock:
Description

SMC MY1H16G-200 Linear Guide Rodless Cylinder

The SMC MY1H16G-200 is an MY1H series mechanically jointed rodless cylinder with a 16 mm bore and a 200 mm stroke. The carriage rides on an integrated linear guide, which improves positioning accuracy and lets the cylinder carry a load directly without an external guide. Because the carriage travels along the cylinder body instead of extending a rod, it fits long-stroke transfer, positioning, and pick-and-place axes where space is tight.

Centralized piping routes both air connections to one end of the cylinder, which simplifies tubing on long strokes. This model has no stroke adjusting unit; the carriage stops on the internal air cushions at each end. It is auto switch capable, so SMC position sensors can be added for end-of-stroke detection.

Specifications

SeriesMY1H, mechanically jointed rodless cylinder
Guide typeIntegrated linear guide
ActionDouble acting
Bore size16 mm
Stroke200 mm
Port threadM thread
PipingCentralized piping
Stroke adjusting unitNone
Auto switchNone (switch-ready; order SMC auto switches separately)
CushioningAir cushion, standard
Minimum operating pressure0.15 MPa
Maximum operating pressure0.8 MPa
Piston speed100 to 1000 mm/s with air cushion; 100 to 1500 mm/s with external shock absorber

MY1H series features

  • One-piece piston and carriage running the full stroke, sealed by an inner seal belt with an outer dust seal band to keep contaminants out.
  • Integrated linear guide for improved positioning accuracy and load capacity.
  • Compact, low-profile footprint compared to rod-style cylinders of the same stroke.
  • Air cushions standard with an easy-access cushion needle; adjustment bolts and low load or high load shock absorbers available as stroke adjusting units.
  • Long stroke option up to 1000 mm (XB11) for the 16 and 20 mm bores.

Need a different bore, stroke, adjuster, or switch combination? Automation Distribution is an authorized SMC distributor and can help you configure the right MY1H part number for your load, speed, and mounting orientation. Contact us for help.

Additional Information
Series:
MY1H
Guide Type:
Linear Guide
Bore Size:
16 mm
Cylinder Stroke:
200 mm
Port Thread Type:
M thread
Piping:
Centralized
Stroke Adjusting Unit Symbol:
None
Auto Switch:
None
Number Of Auto Switches:
None
