SMC MY1M40-100H MY1M Mechanically Jointed Rodless Cylinder, Slide Bearing Guide, 40 mm Bore, 100 mm Stroke, High Load Shock Absorbers

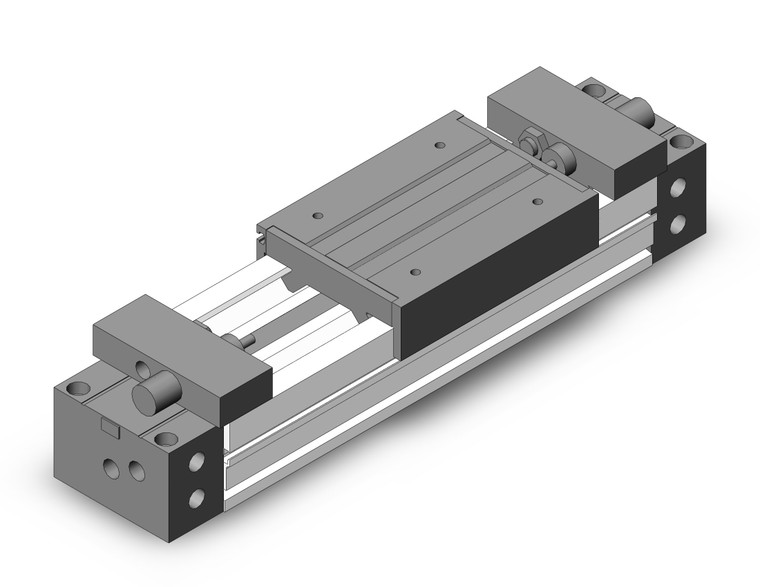

SMC MY1M40-100H Slide Bearing Guide Rodless Cylinder

The SMC MY1M40-100H is an MY1M series mechanically jointed rodless cylinder with a 40 mm bore and a 100 mm stroke. The carriage rides on an integrated slide bearing guide, so it can carry a load directly and resist side loads without an external guide. Because the carriage travels along the cylinder body instead of extending a rod, the MY1M fits long-stroke transfer, positioning, and gantry axes where space is tight.

Standard piping places an air port at each end of the cylinder. This model is fitted with stroke adjusting units (high load shock absorber + adjustment bolt, both ends) to fine-tune the end position and absorb kinetic energy at the stroke end. It is auto switch capable, so SMC position sensors can be added for end-of-stroke detection.

Specifications

MY1M series features

• One-piece piston and carriage running the full stroke, sealed by an inner seal belt with an outer dust seal band to keep contaminants out.
• Integrated slide bearing guide provides lateral stability and protects against side load impacts.
• Compact, low-profile footprint compared to rod-style cylinders of the same stroke.
• Bore sizes 16, 20, 25, 32, 40, 50, and 63 mm; long stroke option up to 5000 mm (XB11), up to 3000 mm for the 16 mm bore.
• Air cushions standard; adjustment bolts and low load or high load shock absorbers available as stroke adjusting units.

Need a different bore, stroke, adjuster, or switch combination? Automation Distribution is an authorized SMC distributor and can help you configure the right MY1M part number for your load, speed, and mounting orientation.
