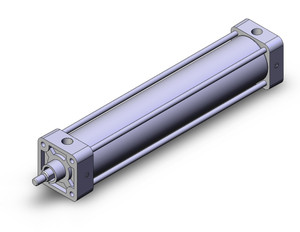

SMC NCDA1KR250-0400 Cylinder, Nca1, Tie Rod

Nc(D)A1, Nfpa, Air Cylinder, Double Acting, Single Rod, Double Rod, Non-Rotating, Oversized Rod, Large Bore W/Options

Series Nca1 Medium Duty Tie Rod Cylinders Are Nfpa Interchangeable, Have A Crimped Piston Rod Assembly, Are Pre-Lubricated And Available In 11 Mounting Styles. Bore Sizes Range From 1.5 To 4 Inches. The Nca1 Expanded Line Of Medium Duty Cylinders Has Bore Sizes Ranging From 5 To 8 Inches, While The Heavy Duty Range Is 1.5 To 14 Inches. The Single Rod Model Is Available In 22 Mounting Styles.

- Standard And Non-Rotating Double Acting And Double Rod
- Oversized Rod
- Large Bore
- Bore Sizes: 1 , 2, 2 , 3 , 4 , 5 , 6 , 8
- Strokes From 1/2 To 80
- Nfpa Standard Mounts: Basic, Foot, Flange, Clevis, Trunnion, Etc
- Nfpa Standard Rod Ends: Small Male, Short Femalee, Flanged, Etc
- Variety Of Switches And A Variety Of Lead Wire Lengths
- Optional Air Cushions And Rod Boots
-

Series Catalog
