Description

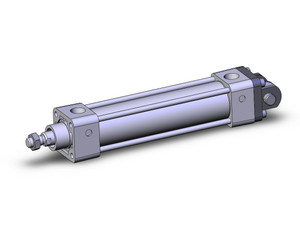

NC(D)A1, NFPA, Air Cylinder, Double Acting, Single Rod, Double Rod, Non-Rotating, Oversized Rod, Large Bore w/Options
Series NCA1 medium duty tie rod cylinders are NFPA interchangeable, have a crimped piston rod assembly, are pre-lubricated and available in 11 mounting styles. Bore sizes range from 1.5 to 4 inches. The NCA1 expanded line of medium duty cylinders has bore sizes ranging from 5 to 8 inches, while the heavy duty range is 1.5 to 14 inches. The single rod model is available in 22 mounting styles.
- Standard and non-rotating double acting and double rod- Oversized Rod
- Large Bore
- Bore sizes: 1 , 2, 2 , 3 , 4 , 5 , 6 , 8
- Strokes from 1/2 to 80
- NFPA Standard Mounts: basic, foot, flange, clevis, trunnion, etc
- NFPA Standard Rod Ends: small male, short femalee, flanged, etc
- Variety of switches and a variety of lead wire lengths
- Optional air cushions and rod boots
-
Additional Information
Manufacturer Part #: |
NCDA1X150-0500 |
Actuator Accessory Type: |
Tie Rod |
Number of Cores: |
2 pcs. [Or None in the Case of No Switch) |
X Option: |
None |
Series Type: |
Standard w/ Magnet |
Air Direction: |
Both Ends (Air Cushion) |
Thread Type: |
Nil (Small Male, Standard, Threaded) |
Mounting: |
MP1, Double Rear Clevis |
Bore Size: |
1 1/2" |
Lead or Prewired Connector: |
0.5m [Or None in the Case of No Switch] |
Stroke: |
5" |
Auto Switch: |
No Switch |
