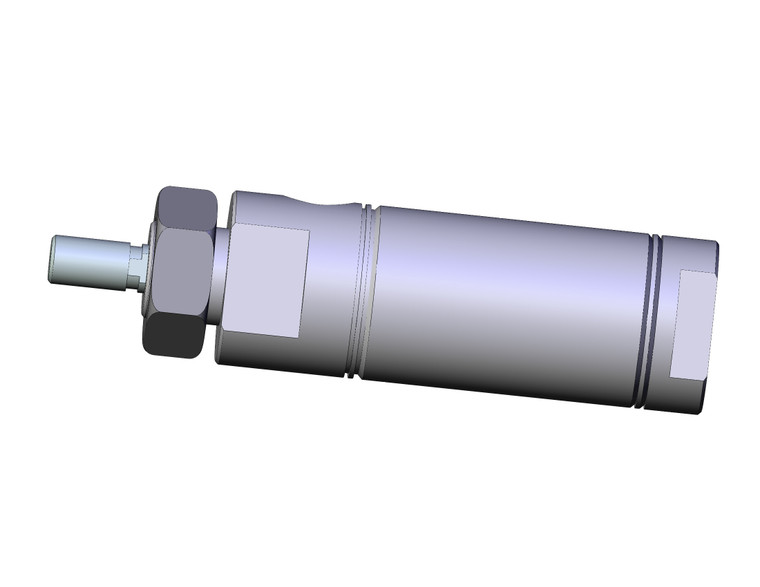

SMC NCDMB106-0050 Round Body Cylinder
- SKU:
- NCDMB106-0050
- Condition:
- New
- Availability:
- In stock: 37
Description
NC(D)M, Stainless Steel Cylinder, Double Acting, Single Rod, Standard
Standard double acting single rod version of our NCM stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 3 mounting styles (front nose, double end and rear pivot). The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16 to 2 and standard strokes from 1/2 to 12 .
- Double acting single rod- Bore sizes (inch): 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
- Mounts: nose, rear, end, rod, block
- Variety of switches and lead wire lengths
- Optional Rod Boot
Additional Information
Magnet: |
D (Built-in) |
Mounting: |
B (Basic) |
Bore Size: |
106 (1 1/16") |
Stroke: |
0050 (1/2") |
Cushion: |
No Cushion |
Rod Boot: |
Without Boot |
Auto Switch: |
No Switch |
Lead Wire or Prewired Connector: |
0.5m (Or None in the Case of No Switch) |
Number: |
2 pcs. (Or None in the Case of No Switch) |
