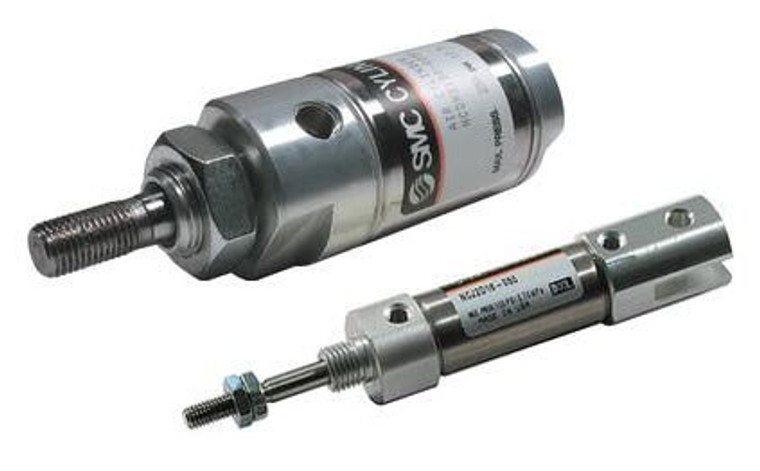

SMC NCMC106-0600S Ncm, Air Cylinder

(No reviews yet) Write a Review
SKU:
NCMC106-0600S
MPN:
NCMC106-0600S
Condition:
New
Magnet:
None
Mounting:
C (Head Side Pivot)
Bore Size:
106 (1 1/16")
Stroke:
0600 (6")
Cushion:
w/o Rubber Bumper
Actuation:
S (Single Acting, Spring Return)
Auto Switch:
None
Lead Wire or Prewired Connector:
0.5m (Or None in the Case of No Switch)
Number:
2 pcs. (Or None in the Case of No Switch)
  • SMC NCMC106-0600S ncm, air cylinder
  • SMC NCMC106-0600S ncm, air cylinder
  • SMC NCMC106-0600S ncm, air cylinder
  • <h2>NC(D)M-S/T, Stainless Steel Cylinder, Single Acting, Single Rod</h2><p><h3>Standard single acting single rod version of our NCM stainless steel cylinders. The NCM is available in 3 mounting styles (front nose, double end, rear pivot). Single acting is available in either spring extend or spring return. Bore sizes range from 3/4 to 1 1/2 and standard strokes from 1/2 to 6 . Available with auto-switch capable as standard.</h3>- Single acting single rod, spring return or spring extend<br>- Bore sizes (inch): 3/4, 7/8, 1 1/16, , 1 1/4, 1 1/2<br>- Maximum stroke: up to 6 as standard<br>- Available with auto switches<br>- <p><a href="https://content2.smcetech.com/pdf/NCM.pdf" target="_blank">Series Catalog</a>
  • SMC NCMC106-0600S Ncm, Air Cylinder
  • SMC NCMC106-0600S Ncm, Air Cylinder
  • SMC NCMC106-0600S Ncm, Air Cylinder
  • SMC NCMC106-0600S Ncm, Air Cylinder
  • SMC NCME150-2900 cyl, air 1 1/2 bore, NCM ROUND BODY CYLINDER
$42.55

Description

NC(D)M-S/T, Stainless Steel Cylinder, Single Acting, Single Rod

Standard single acting single rod version of our NCM stainless steel cylinders. The NCM is available in 3 mounting styles (front nose, double end, rear pivot). Single acting is available in either spring extend or spring return. Bore sizes range from 3/4 to 1 1/2 and standard strokes from 1/2 to 6 . Available with auto-switch capable as standard.

- Single acting single rod, spring return or spring extend
- Bore sizes (inch): 3/4, 7/8, 1 1/16, , 1 1/4, 1 1/2
- Maximum stroke: up to 6 as standard
- Available with auto switches
-

Series Catalog

AutoCAD File

View AllClose

Related Products

Related Products

<h2>NC(D)M, Double Acting, Single Rod, Environmental Options</h2><p><h3>Series NCM stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 4 mounting styles (front nose, double end, rear pivot, and block mount) as well as double rod and spring return or spring extend models. The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16 to 2 and standard strokes from 1/2 to 12 . </h3>- Double acting single rod<br>- Bore sizes (inch): 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2<br>- XC4 Mounts: nose, rear, double end<br>- XC6 Mounts: nose, rear, double end<br>- Variety of switches and lead wire lengths<br>- Optional rubber bumper<p><a href="https://content2.smcetech.com/pdf/NCM.pdf" target="_blank">Series Catalog</a>

SMC NCMC106-0600-XC6 Ncm, Air Cylinder

$41.80
NC(D)M, Double Acting, Single Rod, Environmental OptionsSeries NCM stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. A wear...
NCMC106-0600-XC6
<div class="product-description"><p>series ncm stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. a wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. the ncm is available in 4 mounting styles * as well as double rod and spring return or spring extend models. the ncm is auto-switch capable without any change in cylinder dimension. bore sizes range from 7/16in. to 2in. and standard strokes from 1/2in. to 12in.. </p><ul><li>double acting single rod </li><li>bore sizes *: 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2 </li><li>mounts: nose, rear, end, rod, block </li><li>variety of switches and lead wire lengths</li><li>optional rod boot </li></ul><br><div class="product-files"><div><a target="_blank" href="https://automationdistribution.com/content/files/pdf/ncm.pdf"> series catalog</a></div></div></div>

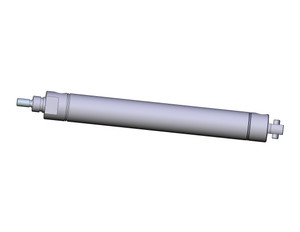

SMC NCMC106-0600 Ncm, Air Cylinder
