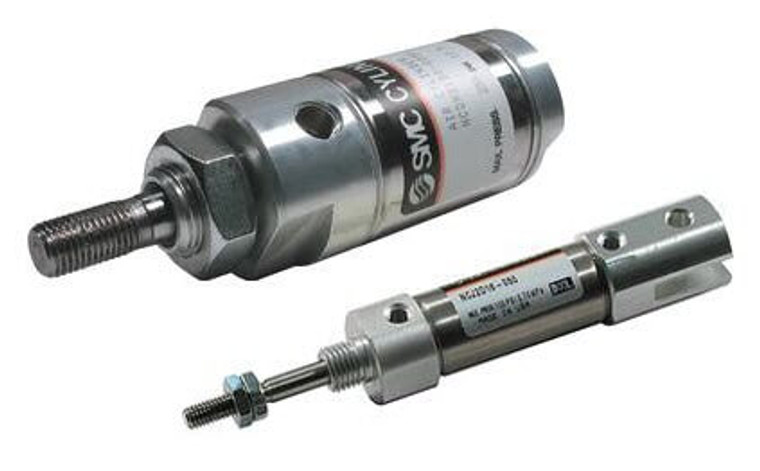

SMC NCME200-1600 Ncm, Air Cylinder
- SKU:
- NCME200-1600
- Condition:
- New
- Availability:
- In stock: 11
- Mounting:
- Double End
- Bore Size:
- 2"
- Stroke:
- 1600
- Cushion:
- No Cushion
- Auto Switch:
- No Switch
- Rod End Modifications:
- Standard Rod End
- Special Temperature:
- 40?? to 140??F
- Speed:
- 2 to 20 in/sec
- Stainless Rod:
- Bore106~200:Carbon Steel
- Bore044~088:
- SS)
Description
series ncm stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. a wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. the ncm is available in 4 mounting styles * as well as double rod and spring return or spring extend models. the ncm is auto-switch capable without any change in cylinder dimension. bore sizes range from 7/16in. to 2in. and standard strokes from 1/2in. to 12in..
- double acting single rod
- bore sizes *: 7/16, 9/16, 3/4, 7/8, 1 1/16,1 1/4, 1 1/2, 2
- mounts: nose, rear, end, rod, block
- variety of switches and lead wire lengths
- optional rod boot
