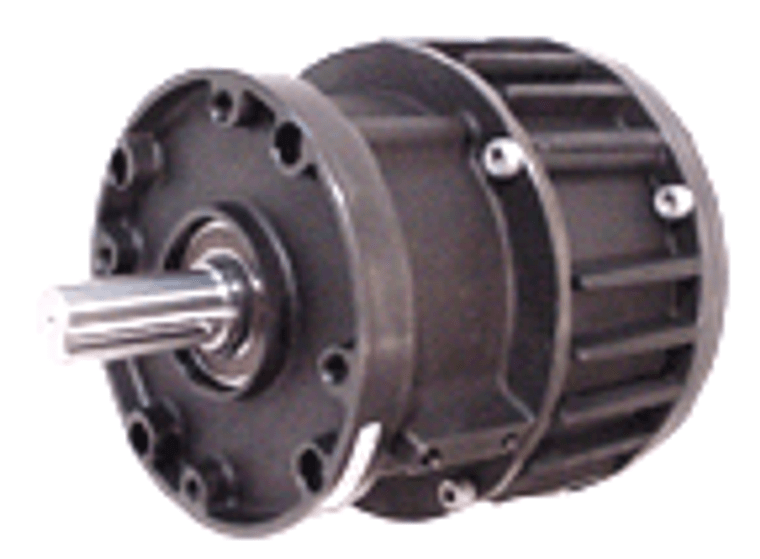

Nexen 801676 Motor/Foot Mount Clutch-Brake
NexenMotor/Foot Mount Clutch-Brake
FMCBE-875*0.875,CAPTIVE KEY,SPCL
Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing
Application Considerations: Captive Output Shaft Keyway If Mounted To A Reducer And High Cycle Rates Consider The Locking-Key Version To Prevent Output Shaft/Keyway Problems See Accessories For Optional Input Shafts And Feet For Foot Mounted Applications
Bore Size=Machined Bore with Keyway; Input Bore Diameter=0.875 in; Output Shaft Diameter=0.875 in; Output Bore Diameter=0.875 in; Output Shaft Length=1.99 in; Output Keyway=0.189 in; Input Bolt Circle Diameter=5.875 in; Input Bolt Hole Size=0.406 in; Input Pilot Diameter=4.500 in; Input Pilot Depth=0.190 in; Output Pilot Diameter=4.500 in; Output Pilot Height=0.125 in; Output Bolt Circle=5.875 in; Output Bolt Hole Size=0.406 in
Product Features=Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing
- Weight:
- 40 lbs
- Mounting Style:
- Foot, Motor or Reducer
- Anti Rotation Style:
- Flange, Optional Feet
- Max Speed:
- 1800 RPM
- Overhung Load Capacity:
- 195 lbs, At 1800 RPM/292 lbs At 1200 RPM, 1.1 in From Pilot Face, For 10,000 Hrs Bearing Life
- Drive Inertia:
- 6.2 lbin²
- Shaft Inertia:
- 7.1 lbin²
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Input Frame Size:
- NEMA 143T/TC, 145T/TC
- Output Frame Size:
- NEMA 143T/TC, 145T/TC
- Bore Details:
- Straight Bore/Shaft
- Max Static Clutch Torque:
- 290 inlb
- Max Static Brake Torque:
- 325 inlb
- Brake Torque:
- 325 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 394 hphr
- Clutch Facing Effective Area:
- 12.84 in²
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 394 hphr
- Brake Facing Effective Area:
- 12.8 in²
- Combined Continuous Thermal Dissipation:
- 0.18 hp
- Combined Heat Sink Capacity:
- 8385 ftlb
- Clutch Peak Thermal Input Rate:
- 12.00 hp
- Brake Peak Thermal Input Rate:
- 12.00 hp
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 1.870 in³
- Brake Air Chamber Volume When Worn Out:
- 2.521 in³
- Clutch Air Chamber Volume When New:
- 1.493 in³
- Clutch Air Chamber Volume When Worn Out:
- 2.145 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- Shaft with Keyway
- Clutch Side Engagement Method:
- Air
- Brake Side Engagement Method:
- Air
