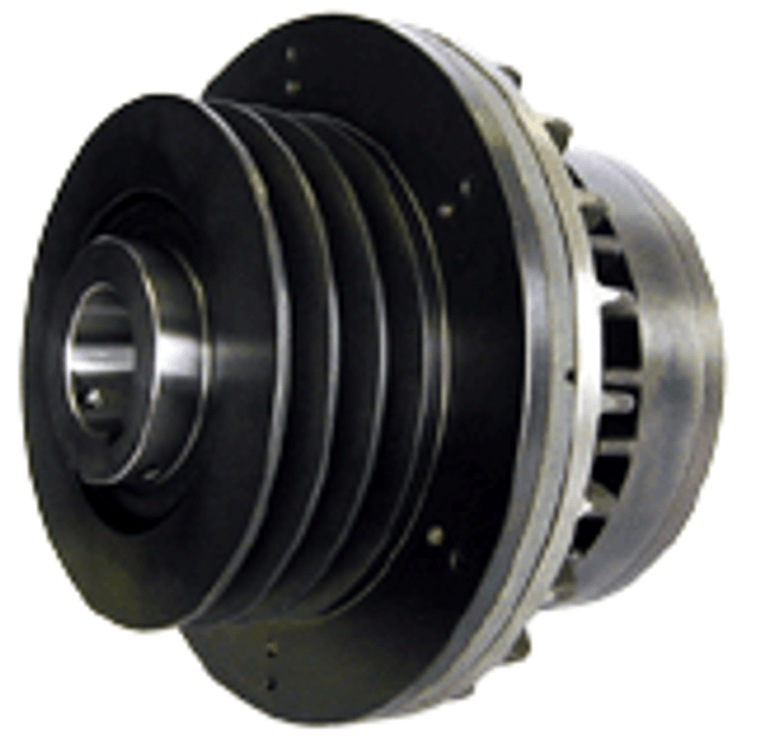

Nexen 801900 Air Engaged Through Shaft Mount Clutch
NexenAir Engaged Through Shaft Mount Clutch
FW*0.875,1-3V GRV,03.35 OD
Air Engaged, Keyed, Straight Bore, Shaft Mount
Configuration Notes: Consider Pt# 802810, Air Champ 2, That Is A Direct Replacement Upgrade For This Product Can Be Configured As A DRIVING Shaft Mounted Clutch-Brake With Disc And Caliper Listed Under Accessories In Left Column
Length=4.75 in; Outer Diameter=4.56 in; Input Bore Min Shaft Insertion=2.00 in, From Pilot End Full From Air Chamber End; Bore Size=0.875 in, Machined Bore with Keyway, 0.500-0.750 in with Optional Adapter Bushings
Product Features=Air Engaged, Keyed, Straight Bore, Shaft Mount; Restrictions=This Clutches Bore Can Be Reduced With The Bushings Found In Accessories To The Left
- Weight:
- 8.75 lbs
- Output Type:
- V-Belt Pulley, 1-3V, 3.35 in OD Sheave
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM
- Drive Inertia:
- 5.41 lbin²
- Shaft Inertia:
- 4.79 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 140 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 230 hphr
- Clutch Facing Effective Area:
- 11.93 in²
- Max Clutch Continuous Thermal Dissipation:
- 0.25 hp
- Clutch Heat Sink Capacity:
- 30000 ftlb
- Clutch Peak Thermal Input Rate:
- 10.70 hp
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 5 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway, Nexen Adapter Bushing Required
- Clutch Air Chamber Volume When New:
- 0.266 in³
- Clutch Air Chamber Volume When Worn Out:
- 0.695 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
