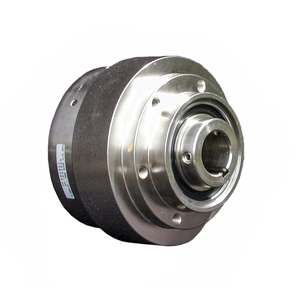

Nexen 802994 Air Engaged Enclosed Torque Limiter
NexenAir Engaged Enclosed Torque Limiter
TL40A-E,1.500 BORE,AIR,19.7 FT CORD,SPCL
Air Engaged, Shaft Mount, Straight Bore, Single Position, Enclosed
Configuration Notes: Special With 19.7 ft Cable And Special Switch Dowel Pin Application Considerations: Now Improved With Turck Proximity Sensor (Click User Manual In Left Column For Installation Details) Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure
Bore Size=1.500 in, Machined Bore with Keyway; Output Bolt Circle=4.75 in; Output Bolt Hole Size=6 0.375-16 in, Holes @ 60°
Product Features=Air Engaged, Shaft Mount, Straight Bore, Single Position, Enclosed; Restrictions=Consult Nexen For Engagement at Differential Speeds
- Weight:
- 30 lbs
- Output Type:
- Pilot
- Min Sprocket Size:
- 40/40T, 50/30T, 60/26T, 80/20T
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 1, @ 360°
- Max Speed:
- 1200 RPM
- Drive Inertia:
- 54.72 lbin²
- Shaft Inertia:
- 25.20 lbin²
- Backlash:
- 0.28 °
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP55
- Bore Details:
- Straight
- Input Shaft Securement:
- 3, 0.190 -24 Set Screws @ 120°
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 15 psi
- Inlet Size:
- 0.125 NPT
- Hose Length:
- 8.25 in
- Cable Length:
- 2 m
- Number of Sensors:
- 1
- Housing Type:
- Enclosed
- Bore Style:
- Machined Bore with Keyway
- Clutch Air Chamber Volume When New:
- 1.560 in³
- Materials Of Construction:
- Nickel Plated
- Sensor Function:
- Disengagement
- Sensor 1 Function:
- Disengagement
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Inductive Proximity
- Min Disengagement Torque:
- 900 inlb
- Max Disengagement Torque:
- 4190 inlb
