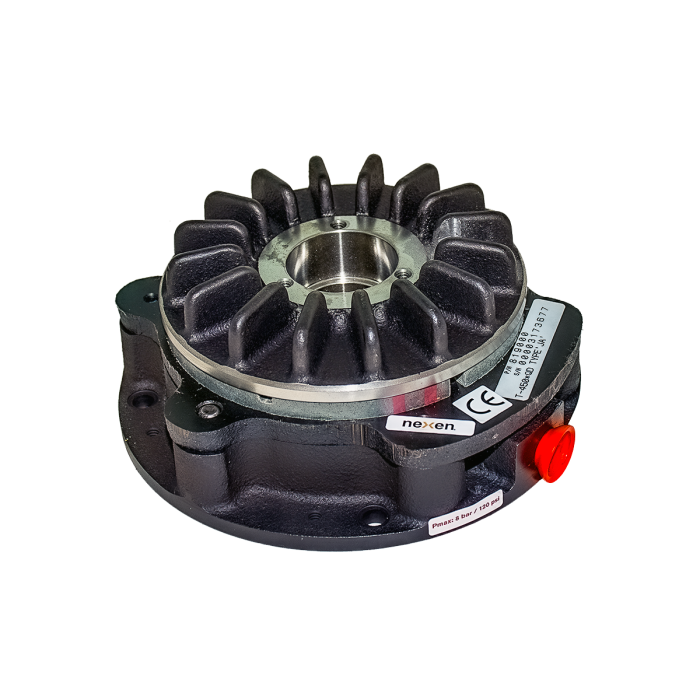

Nexen 820602 Shaft Mount QD Bore Tension Brake
NexenShaft Mount QD Bore Tension Brake
T-600*QD TYPE'SH',TEFLON
Air Engaged, Shaft Mount, Single Caliper, Air Cooled, Taper Bore
Configuration Notes: Consider 820609 Ultra-LoCo That Has Similar Performance To Teflon Facing But Withstands More Heat And Is Less Expensive To Prevent Housing Rotation See Torque Pin Bracket Under Accessories To the Left Nexen Does Not Provide The QD Bushing
Length=3.19 in; Outer Diameter=7.19 in; Bore Size=0.500 to 1.375 in Customer Taper Bushing Required
Product Features=Air Engaged, Shaft Mount, Single Caliper, Air Cooled, Taper Bore; Restrictions=This Brake Should Not Be Flange Mounted Or May Be Damaged, Teflon Facings Can Degrade At High Temperatures; Braking Capability=Continuous Slip, Cyclic Dynamic, E-Stop, Holding
- Weight:
- 15.1 lbs
- Mounting Style:
- Flange, Shaft
- Anti Rotation Style:
- Flange, Optional Torque Pin Bracket
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 1800 RPM
- Shaft Inertia:
- 20.16 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- QD Type SH
- Max Static Brake Torque:
- 336.00 inlb
- Max Dynamic Torque:
- 286 inlb
- Brake Facing Type:
- Teflon (Ultra Low) Coefficient
- Brake Facing Edge Color Code:
- No Color Code, Tan Overall
- Approximate Brake Facing Life:
- 1716 hphr
- Brake Facing Effective Area:
- 18.6 in²
- Max Brake Continuous Thermal Dissipation:
- 1.30 hp
- Brake Heat Sink Capacity:
- 60000 ftlb
- Brake Peak Thermal Input Rate:
- 17.00 hp
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 3 psi
- Inlet Size:
- 0.250 NPT
- Bore Style:
- Customer Taper Bushing Required
- Brake Air Chamber Volume When New:
- 1.024 in³
- Brake Air Chamber Volume When Worn Out:
- 2.108 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- None
