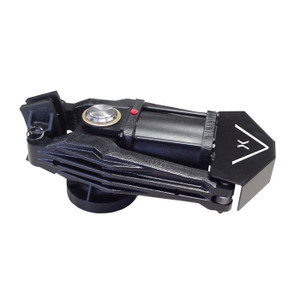

Nexen 835040 Spring Engaged Caliper Brake
NexenSpring Engaged Caliper Brake
DBSE*14 SPRING,STD,.250 DISC,NO BRACKET,PF
Spring Engaged, Air Released, Housing Mount
Application Considerations: Spring Engaged, Housing Mounted Brake Torque = Working Radius X Torque Factor
Disc Thickness=0.250 in; Disc Working Radius=WR=D/2-0.750 For 10 in Or Larger Discs
Product Features=Spring Engaged, Air Released, Housing Mount; Restrictions=Consult Nexen For Use In Cyclic Applications; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 13.55 lbs
- Engagement Method:
- Spring
- Release Method:
- Air
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Acrylic Paint
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- 2862 inlb, With A 16 in Disc
- Brake Torque:
- 2862 inlb, With A 16 in Disc
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 1244 hphr
- Brake Facing Effective Area:
- 12.6 in²
- Brake Peak Thermal Input Rate:
- 31.00 hp
- Static Torque Factor Unburnished:
- 432 lbf, @ 0 psi
- Dynamic Torque Factor Unburnished:
- 367 lbf, @ 0 psi
- Clamping Force:
- 1168 lbf, @ 80 psi
- Max Allowable Pressure:
- 120 psi
- Min Release Pressure:
- 95 psi
- Inlet Size:
- 0.125 NPT
- Approximate Life:
- More Than 1000000, Static Braking Cycles
- Brake Air Chamber Volume When New:
- 0.272 in³
- Brake Air Chamber Volume When Worn Out:
- 0.586 in³
- Materials Of Construction:
- Black Acrylic Paint
