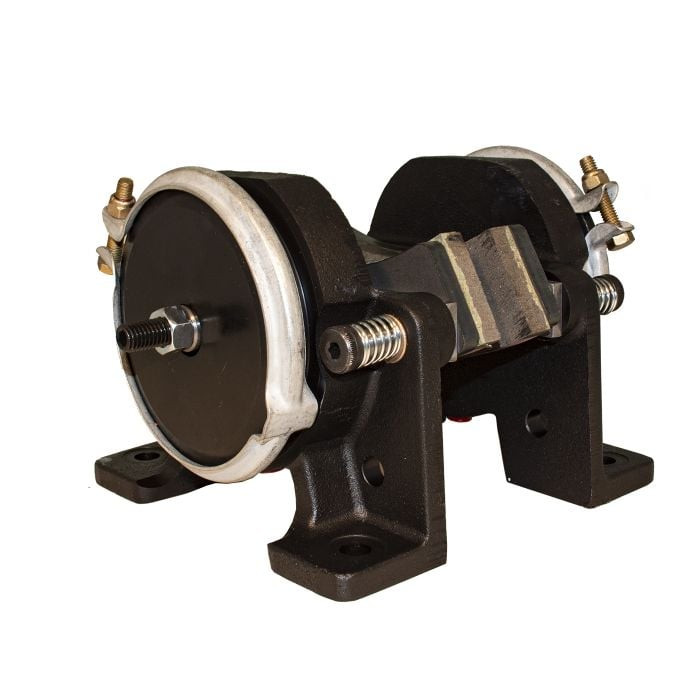

Nexen 835237 Spring Engaged Caliper Brake
NexenSpring Engaged Caliper Brake
BC425S*BRAKE,SPR ENGAGED,HCO,SPCL
Spring Engaged, Air Released, Foot Mount, Independent Actuators
Application Considerations: Spring Engaged, Foot Mounted, Independent Actuators Brake Torque = Working Radius X Torque Factor
Disc Thickness=1.250 in; Disc Working Radius=WR=D/2-1.062 For 16 in Or Larger Discs
Product Features=Spring Engaged, Air Released, Foot Mount, Independent Actuators; Restrictions=Consult Nexen For Use In Cyclic Applications; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 34 lbs
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- 0.02 in, Linear Or Disc Working Radius
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- 5300 inlb, With A 24 in Disc
- Brake Torque:
- 5300 inlb, With A 24 in Disc
- Brake Facing Type:
- High Coefficient
- Brake Facing Edge Color Code:
- Purple
- Approximate Brake Facing Life:
- 924 hphr
- Brake Facing Effective Area:
- 26.4 in²
- Brake Peak Thermal Input Rate:
- 66.00 hp
- Static Torque Factor Unburnished:
- 485 lbf, @ 0 psi
- Dynamic Torque Factor Unburnished:
- 412 lbf, @ 0 psi
- Clamping Force:
- 2354 lbf, @ 0 psi
- Max Allowable Pressure:
- 120 psi
- Min Release Pressure:
- 83 psi
- Inlet Size:
- 0.125 NPT
- Brake Air Chamber Volume When New:
- 0.785 in³
- Brake Air Chamber Volume When Worn Out:
- 5.021 in³
- Materials Of Construction:
- Black Oxide
