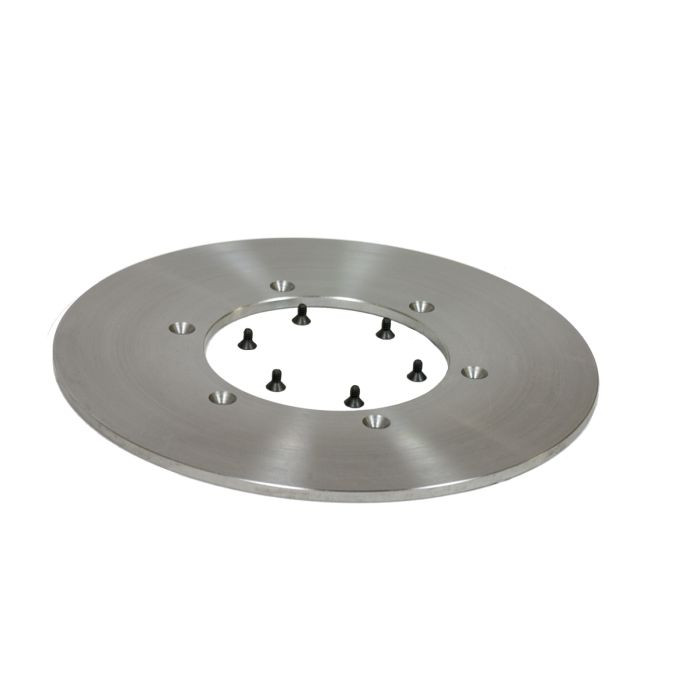

Nexen 855500 Caliper Brake Disc Without Hub
NexenCaliper Brake Disc Without Hub
DB*CALIPER DISC,10.00 OD
Non-Ventilated, Disc Without Hub Only
Configuration Notes: To Mount This Brake Disc On A Shaft A Hub Is Required And Listed Under Accessories To The Left Application Considerations: 0.25 Inch Thick, Non-Ventilated, Disc Without Hub, For DB And DBSE Calipers This Disc Can Be Added To Certain Air Champ LW OR L600 Clutches To Create A Driven Shaft Mounted Clutch-Brake
Bore Size=4.500 in; Disc Thickness=0.23 in; Disc Diameter=10 in; Disc Working Radius=DB=4.250 in
Product Features=Non-Ventilated, Disc Without Hub Only
- Weight:
- 4.1 lbs
- Max Speed:
- 4500 RPM
- Shaft Inertia:
- 50 lbin²
- Primary Finish:
- Black Oxide
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- 0
- Bore Details:
- Straight
- Brake Heat Sink Capacity:
- 75900 ftlb
- Materials Of Construction:
- Black Oxide
