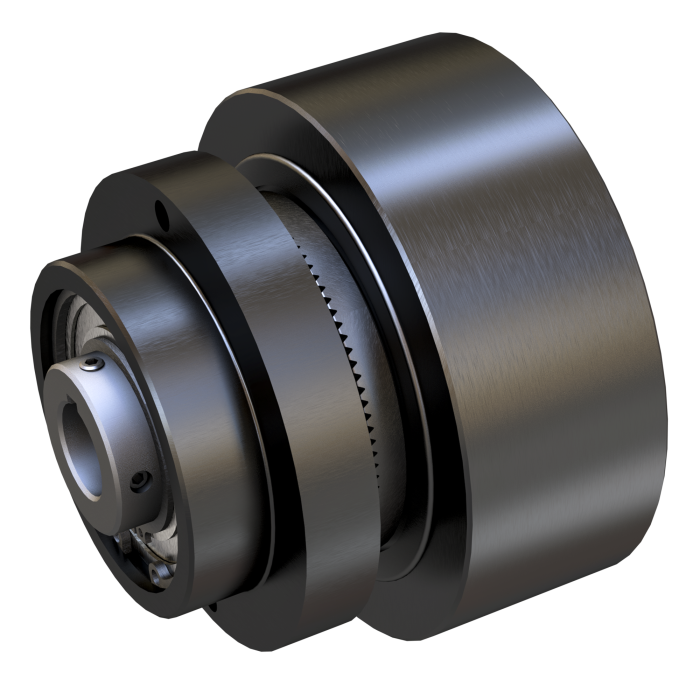

Air Engaged Tooth Clutch



5H35P-1*25MM BORE,PILOT,METRIC,ASAHI CTHP-25 REPL,SPCL

Air Engaged, Spring Released, Pilot Mount, Non-Positioning

Configuration Notes: Special Pilot And Bolt Circle Diameter And Set Screws On Pilot End To Match Asahi CTHP25 Nexen Does Not Offer Couplings For Metric 5H's, See Inch 5H's With A Metric Bore

Length=98.0 mm; Outer Diameter=129.0 mm; Pilot Size=88 mm; Input Bore Min Shaft Insertion=52 mm, From Pilot End Full Insetion From Air Chamber End; Bore Size=25 mm, Machined Bore with Keyway; Input Keyway=8W x 8H x 97.9L mm Full Length Key Recommended; Output Pilot Height=20.0 mm; Output Bolt Circle=103 mm; Output Bolt Hole Size=3, 4 M6-1.00 mm, Holes @ 120° And 90°

Product Features=Air Engaged, Spring Released, Pilot Mount, Non-Positioning; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
Additional Information
Weight:
11 lbs
Min Sprocket Size:
35/40T, 40/32T, 50/26T, 60/22T, 80/17T
Mounting Style:
Shaft
Engagement Method:
Air
Release Method:
Spring
Number Of Engagement Positions:
106
Max Speed:
3200 RPM
Drive Inertia:
32.99 kgcm²
Shaft Inertia:
8.42 kgcm²
Backlash:
0.35 °
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
Min Ambient Temperature:
0 °C
Max Ambient Temperature:
66 °C
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
Straight
Input Shaft Securement:
None, Requires Customer Supplied Collars, Shaft Step And/Or Snap Ring Grooves
Max Static Clutch Torque:
300 Nm
Min Static Clutch Torque:
68 Nm
Max Operating Pressure:
6.0 bar
Min Engagement Pressure:
1.4 bar
Air Chamber Volume:
8.062 cm³
Inlet Size:
0.250-18 BSPTM
Hose Length:
222 mm
Positioning:
Non-Positioning
Bore Style:
Machined Bore with Keyway
Materials Of Construction:
Machined Aluminum Air Chamber Black Oxide Pilot
Output Configuration:
Pilot
