Nexen 910120 Metric 5HP Pilot Mt Tooth 5H40P-1 30MM BORE,PILOT,METRIC,SPCL

Nexen 910120 Air Engaged Tooth Clutch

Nexen
SKU:
910120
Availability:
Contact us to confirm availability and lead times.
$1,317.00
Condition:
New
Current Stock:
Description

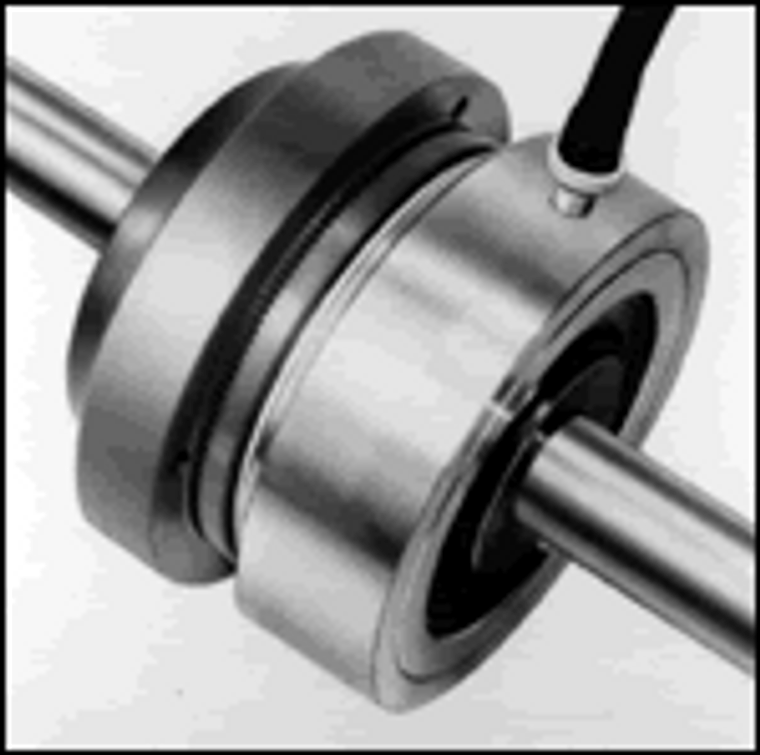

Air Engaged Tooth Clutch



5H40P-1*30MM BORE,PILOT,METRIC,SPCL

Air Engaged, Spring Released, Pilot Mount, Non-Positioning

Configuration Notes: This Unit Has Sealed Bearings And Piston Anti Rotation Hardware Nexen Does Not Offer Couplings For Metric 5H's, See Inch 5H's With A Metric Bore

Length=101.0 mm; Outer Diameter=134.9 mm; Pilot Size=88 mm; Input Flange Size=124.0 mm; Bore Size=30 mm, Machined Bore with Keyway; Output Pilot Height=17.4 mm; Output Bolt Circle=102 mm; Output Bolt Hole Size=3, 4 M6-1.00 mm, Holes @ 120° And 90°

Product Features=Air Engaged, Spring Released, Pilot Mount, Non-Positioning; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
Additional Information
Weight:
12 lbs
Min Sprocket Size:
35/45T, 40/34T, 50/28T, 60/24T, 80/18T
Mounting Style:
Shaft
Engagement Method:
Air
Release Method:
Spring
Number Of Engagement Positions:
122
Max Speed:
3000 RPM
Drive Inertia:
46.13 kgcm²
Shaft Inertia:
11.41 kgcm²
Backlash:
0.30 °
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
Min Ambient Temperature:
0 °C
Max Ambient Temperature:
66 °C
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
Straight
Input Shaft Securement:
None, Requires Customer Supplied Collars, Shaft Step And/Or Snap Ring Grooves
Max Static Clutch Torque:
440 Nm
Min Static Clutch Torque:
102 Nm
Max Operating Pressure:
6.0 bar
Min Engagement Pressure:
1.4 bar
Air Chamber Volume:
10.471 cm³
Inlet Size:
0.250-18 BSPTM
Hose Length:
222 mm
Positioning:
Non-Positioning
Bore Style:
Machined Bore with Keyway
Materials Of Construction:
Machined Aluminum Air Chamber Black Oxide Pilot
Output Configuration:
Pilot
