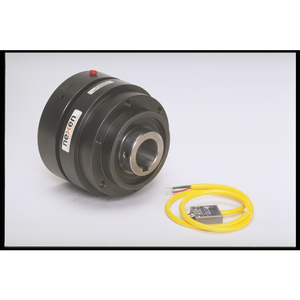

Nexen 913002 Air Engaged Positioning Tooth Clutch

(No reviews yet) Write a Review
SKU:
913002
MPN:
913002
Condition:
New
Weight:
14.1 lbs
Min Sprocket Size:
35/40T, 40/32T, 50/26T, 60/22T, 80/17T
Mounting Style:
Shaft
Engagement Method:
Air
Release Method:
Spring
Number Of Engagement Positions:
1, @ 360°
Max Speed:
1650 RPM
Drive Inertia:
10.56 lbin²
Shaft Inertia:
2.22 lbin²
Backlash:
0.38 °
Open Or Enclosed Design:
Enclosed
Primary Finish:
Nickel Plated
Min Ambient Temperature:
32 °F
Max Ambient Temperature:
150 °F
CE Certified:
CE
RoHS Compliant:
RoHS
IEC IP Rating:
IP55
Bore Details:
Straight
Max Static Clutch Torque:
1850 inlb
Min Static Clutch Torque:
475 inlb
Max Allowable Pressure:
120 psi
Max Operating Pressure:
80 psi
Min Engagement Pressure:
20 psi
Air Chamber Volume:
1.103 in³
Inlet Size:
0.125-27 NPTM
Hose Length:
8.25 in
Positioning:
Positioning
Bore Style:
Machined Bore with Keyway
Materials Of Construction:
Nickel Plated
Output Configuration:
Pilot
  • Nexen 913002 5HPSP-E Sngl Pos. Enclosed 5H30PSP-E 0.875 BORE,PILOT
  • Nexen 913002 Air Engaged Positioning Tooth Clutch
$1,562.00

Description

Air Engaged Positioning Tooth Clutch



5H30PSP-E*0.875 BORE,PILOT

Air Engaged, Spring Released, Pilot Mount, Single Position, Enclosed

Positional Reengagement Torque Is Approximately 10% Of Clutch Torque Being Generated Based On Applied Air Pressure The Enclosure Seal On Outer Housing Can Generate Up To 200°F When New Depending On The 5HP-E Size And RPM. Time To Break In And Temperature To Drop Will Vary With Application.

Pilot Size=2.875 in; Bore Size=0.875 in, Machined Bore with Keyway; Output Bolt Circle=3.437 in, additional 3.562 in; Output Bolt Circle=3.437 in, additional 3.562 in; Output Bolt Hole Size=0.250-20, 0.312-18 in, 6 Holes @ 60° And 4 Holes @ 90°

Product Features=Air Engaged, Spring Released, Pilot Mount, Single Position, Enclosed; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
