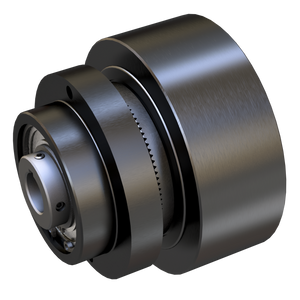

Nexen 913122 Air Engaged Tooth Clutch

Nexen 913122 Air Engaged Tooth Clutch

Nexen
SKU:
913122
Availability:
Contact us to confirm availability and lead times.
$12,348.00
Condition:
New
Current Stock:
Description

Air Engaged Tooth Clutch



5H100P-1*85MM BORE,PILOT,NSB

Air Engaged, Spring Released, Pilot Mount, Non-Positioning

Configuration Notes: Special Inch Unit With Metric Bore Can Accept Nexen Couplings For Shaft To Shaft Applications

Pilot Size=9.000 in; Bore Size=85 mm, Machined Bore with Keyway; Output Bolt Circle=11 in; Output Bolt Hole Size=6 0.500-20 in, Holes @ 60°

Product Features=Air Engaged, Spring Released, Pilot Mount, Non-Positioning; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
Additional Information
Weight:
215 lbs
Min Sprocket Size:
120/30T, 140/25T, 160/23T, 200/19T
Mounting Style:
Shaft
Engagement Method:
Air
Release Method:
Spring
Number Of Engagement Positions:
328
Max Speed:
1000 RPM
Drive Inertia:
3631.89 kgcm²
Shaft Inertia:
1091.46 kgcm²
Backlash:
0.15 °
Open Or Enclosed Design:
Open
Primary Finish:
Black Oxide
Min Ambient Temperature:
0 °C
Max Ambient Temperature:
66 °C
CE Certified:
CE
RoHS Compliant:
RoHS
Bore Details:
Straight
Max Static Clutch Torque:
6621 Nm
Min Static Clutch Torque:
1655 Nm
Max Operating Pressure:
6.0 bar
Min Engagement Pressure:
1.4 bar
Air Chamber Volume:
55.39 cm³
Inlet Size:
0.250-18 BSPTM
Hose Length:
222 mm
Positioning:
Non-Positioning
Bore Style:
Machined Bore with Keyway
Materials Of Construction:
Machined Aluminum Air Chamber Black Oxide Pilot
Output Configuration:
Pilot
