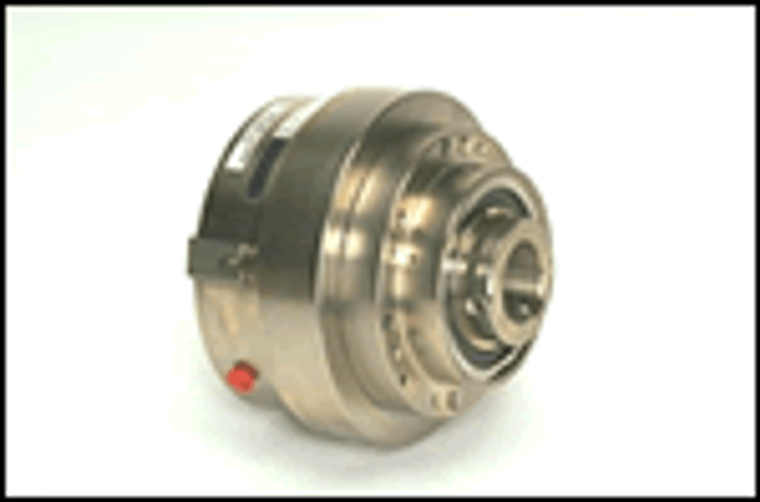

Air Engaged Tooth Clutch
5H45P-E*1.625 BORE,PILOT,NSB
Air Engaged, Spring Released, Pilot Mount, Non-Positioning, Enclosed
The Enclosure Seal On Outer Housing Can Generate Up To 200°F When New Depending On The 5HP-E Size And RPM. Time To Break In And Temperature To Drop Will Vary With Application.
Pilot Size=4.125 in; Bore Size=1.625 in, Machined Bore with Keyway; Output Bolt Circle=4.75 in; Output Bolt Hole Size=4, 6 0.313-18, 0.250-20 in, Holes @ 90°
Product Features=Air Engaged, Spring Released, Pilot Mount, Non-Positioning, Enclosed; Restrictions=Consult Nexen For Use In Cyclic Applications Or Engagement At Differential Speeds
- Weight:
- 26.25 lbs
- Min Sprocket Size:
- 40/36T, 50/30T, 60/26T, 80/20T, 100/17T
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Number Of Engagement Positions:
- 137
- Max Speed:
- 1200 RPM
- Drive Inertia:
- 29.03 lbin²
- Shaft Inertia:
- 10.01 lbin²
- Backlash:
- 0.28 °
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP55
- Bore Details:
- Straight
- Max Static Clutch Torque:
- 4900 inlb
- Min Static Clutch Torque:
- 1230 inlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 20 psi
- Air Chamber Volume:
- 0.763 in³
- Inlet Size:
- 0.125-27 NPTM
- Hose Length:
- 8.25 in
- Positioning:
- Non-Positioning
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Nickel Plated
- Output Configuration:
- Pilot
