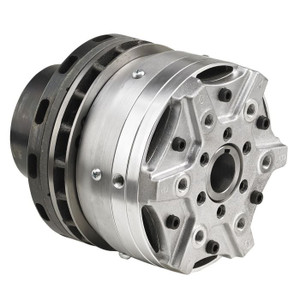

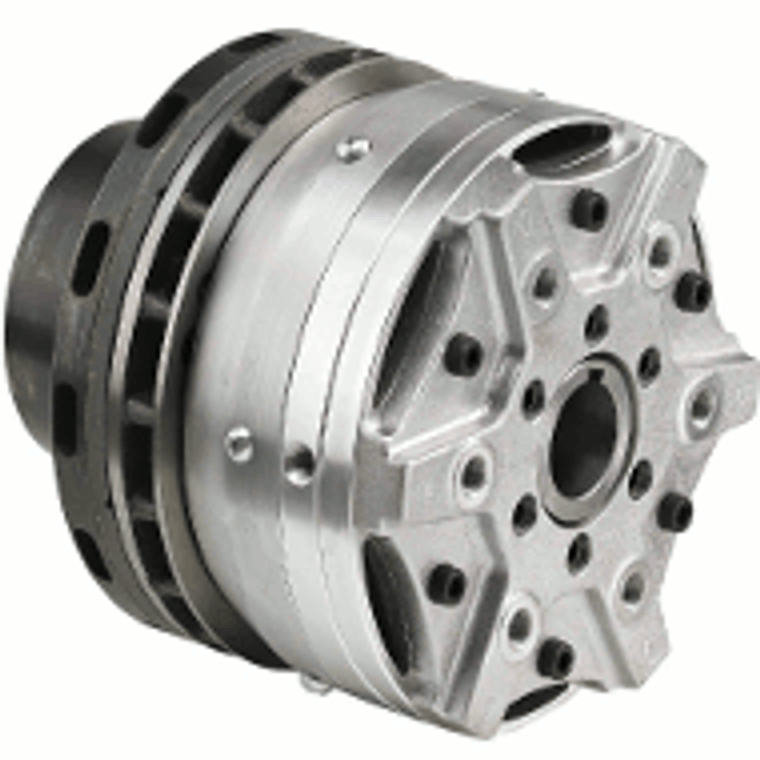

Nexen 927284 Multi-Actuator Tension Clutch
NexenMulti-Actuator Tension Clutch
STC940*1.625 BORE,ULTRA LCO
Air Engaged, Straight Bore, Shaft Mount, Pilot Output, Multiple Actuators
Application Considerations: Three Sets Of Different Sized Actuators Provide Wide Range Of Tension Control
Length=9.04 in; Outer Diameter=9.40 in; Pilot Size=4.875 in; Bore Size=1.625 in, Machined Bore with Keyway; Output Bolt Circle=5.625 in; Output Bolt Hole Size=6 0.375-16 in, Holes @ 60°
Product Features=Air Engaged, Straight Bore, Shaft Mount, Pilot Output, Multiple Actuators
- Output Type:
- Pilot
- Min Sprocket Size:
- 35/79T, 40/60T, 50/48T
- Mounting Style:
- Shaft
- Engagement Method:
- Air
- Release Method:
- Spring
- Max Speed:
- 2400 RPM
- Drive Inertia:
- 138.24 lbin²
- Shaft Inertia:
- 104.4 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Bare Aluminum
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight
- Max Dynamic Torque:
- 1268 inlb
- Clutch Facing Type:
- Ultra Low Coefficient
- Clutch Facing Edge Color Code:
- Blue
- Approximate Clutch Facing Life:
- 6750 hphr
- Clutch Facing Effective Area:
- 44.93 in²
- Max Clutch Continuous Thermal Dissipation:
- 3.00 hp
- Clutch Peak Thermal Input Rate:
- 41.00 hp
- Max Number Of Calipers:
- 3
- Max Dynamic Torque With Small Pistons:
- 337 inlb
- Max Dynamic Torque With Medium Pistons:
- 432 inlb
- Max Dynamic Torque With Large Pistons:
- 541 inlb
- Max Dynamic Torque With All Calipers:
- 1268 inlb
- Operating Range:
- 1-85 psi
- Inlet Size:
- 0.125 NPT, Or 5/32 in Plastic Tubing
- Bore Style:
- Machined Bore with Keyway
- Materials Of Construction:
- Machined Aluminum
- Output Shaft Style:
- None
