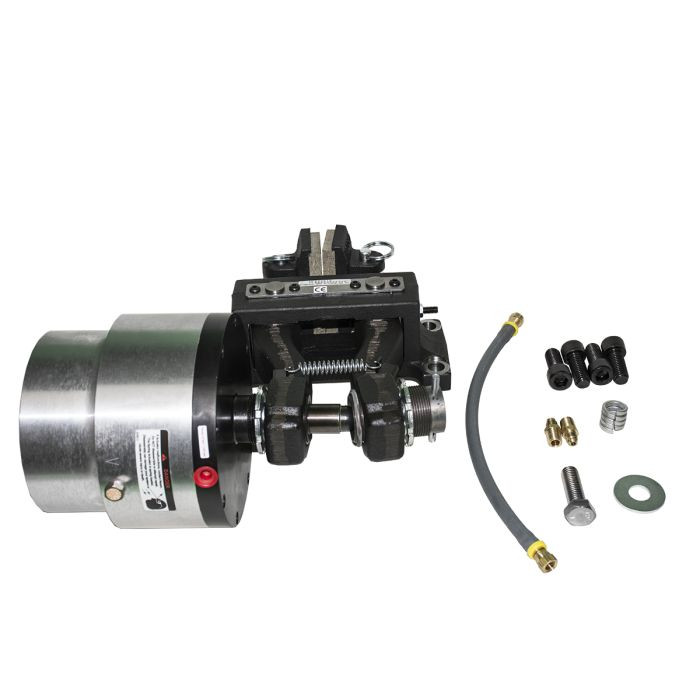

Nexen 933517 Spring Engaged Caliper Brake
NexenSpring Engaged Caliper Brake
BD*BRAKE,AIR/SPR ACTUATE,60 PSI RELEASE,SPC,SPCL
Spring Engaged, Hydraulic Released, Foot Mount
Application Considerations: Spring Actuated/Hydraulic Released, Foot Mounted Facing Type In BD Caliper Model Description Is One Type/Coefficient Lower Than Actual Brake Torque = Working Radius X Torque Factor
Disc Thickness=0.500 in; Disc Working Radius=WR=D/2-1.437 For 12 in Or Larger Discs
Product Features=Spring Engaged, Hydraulic Released, Foot Mount; Restrictions=Consult Nexen For Use In Cyclic Applications; Braking Capability=Cyclic Dynamic, E-Stop, Holding
- Weight:
- 61.2 lbs
- Engagement Method:
- Spring
- Release Method:
- Air
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Brake Torque:
- 15200 inlb, With A 24 in Disc
- Brake Torque:
- 15200 inlb, With A 24 in Disc
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 2447 hphr
- Brake Facing Effective Area:
- 31.0 in²
- Brake Peak Thermal Input Rate:
- 77.00 hp
- Static Torque Factor Unburnished:
- 1432 lbf, @ 0 psi
- Dynamic Torque Factor Unburnished:
- 1217 lbf, @ 0 psi
- Clamping Force:
- 1702 lbf, @ 0 psi
- Max Allowable Pressure:
- 1500 psi
- Max Operating Pressure:
- 1500 psi
- Min Release Pressure:
- 60 psi
- Inlet Size:
- 0.250-18 NPTF
- Materials Of Construction:
- Black Oxide
