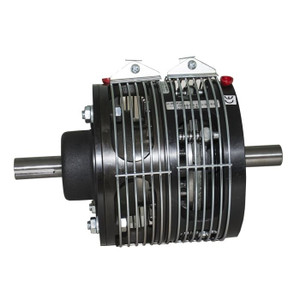

Nexen 935500 Modular Motor/Foot Mount Clutch-Brake
NexenModular Motor/Foot Mount Clutch-Brake
MDB-1125
Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing, Modular
Application Considerations: More Commonly Sold As Separate Components Which May Have Better Lead Times See Accessories For Optional Input Shaft Unit And Feet Available For Reducer Or Foot Mounted Applications, Product Number 935800 Includes The Input Shaft Unit, Product Number 931700 Includes The Input Shaft Unit And Feet This Product Can Be Made Drip Proof With The Guard Listed Under Accessories
Length=10.24 in; Body Length=7.59 in; Outer Diameter=9.56 in; Bore Size=Machined Bore with Keyway; Input Bore Diameter=1.125 in; Input Bore Max Shaft Insertion=2.74 in; Input Keyway=0.250W x 0.250H x 1.63L in; Output Shaft Diameter=1.125 in; Output Bore Diameter=1.125 in; Output Shaft Length=2.65 in; Output Keyway=0.250W x 0.250H x 1.78L in; Input Bolt Circle Diameter=7.250 in; Input Bolt Hole Size=0.53 in, 4 @ 90°; Input Pilot Diameter=8.50 in; Input Pilot Depth=0.21 in; Output Pilot Diameter=8.50 in; Output Pilot Height=0.25 in; Output Bolt Circle=8.5 in, 4 @ 90°; Output Bolt Hole Size=0.53 in
Product Features=Air Engaged Brake, Air Engaged Clutch, Flange Mount, Foot Mount Capable, Enclosed Housing, Modular
- Weight:
- 66.3 lbs
- Mounting Style:
- Foot, Motor or Reducer
- Anti Rotation Style:
- Flange, Optional Feet
- Max Speed:
- 1800 RPM
- Overhung Load Capacity:
- 554 lbs, At 1800 RPM/636 lbs At 1200 RPM, 1 in From Pilot Face, For 10,000 Hrs Bearing Life
- Drive Inertia:
- 17.4 lbin²
- Shaft Inertia:
- 20.5 lbin²
- Open Or Enclosed Design:
- Open
- Primary Finish:
- Black Oxide
- Min Ambient Temperature:
- 32 °F
- Max Ambient Temperature:
- 150 °F
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Input Frame Size:
- NEMA 182T/TC, 184T/TC
- Output Frame Size:
- NEMA 182T/TC, 184T/TC
- Bore Details:
- Straight Bore/Shaft
- Input Shaft Securement:
- N/A
- Max Static Clutch Torque:
- 600 inlb
- Max Static Brake Torque:
- 965 inlb
- Brake Torque:
- 965 inlb
- Clutch Facing Type:
- Standard Coefficient
- Clutch Facing Edge Color Code:
- Red
- Approximate Clutch Facing Life:
- 572 hphr
- Clutch Facing Effective Area:
- 18.62 in²
- Brake Facing Type:
- Standard Coefficient
- Brake Facing Edge Color Code:
- Red
- Approximate Brake Facing Life:
- 572 hphr
- Brake Facing Effective Area:
- 18.6 in²
- Combined Continuous Thermal Dissipation:
- 0.50 hp
- Clutch Heat Sink Capacity:
- 60000 ftlb
- Brake Heat Sink Capacity:
- 60000 ftlb
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Engagement Pressure:
- 5 psi
- Inlet Size:
- 0.125 NPT
- Bore Style:
- Machined Bore with Keyway
- Brake Air Chamber Volume When New:
- 1.276 in³
- Brake Air Chamber Volume When Worn Out:
- 2.610 in³
- Clutch Air Chamber Volume When New:
- 0.397 in³
- Clutch Air Chamber Volume When Worn Out:
- 1.058 in³
- Materials Of Construction:
- Black Oxide
- Output Shaft Style:
- Shaft with Keyway
- Clutch Side Engagement Method:
- Air
- Brake Side Engagement Method:
- Air
