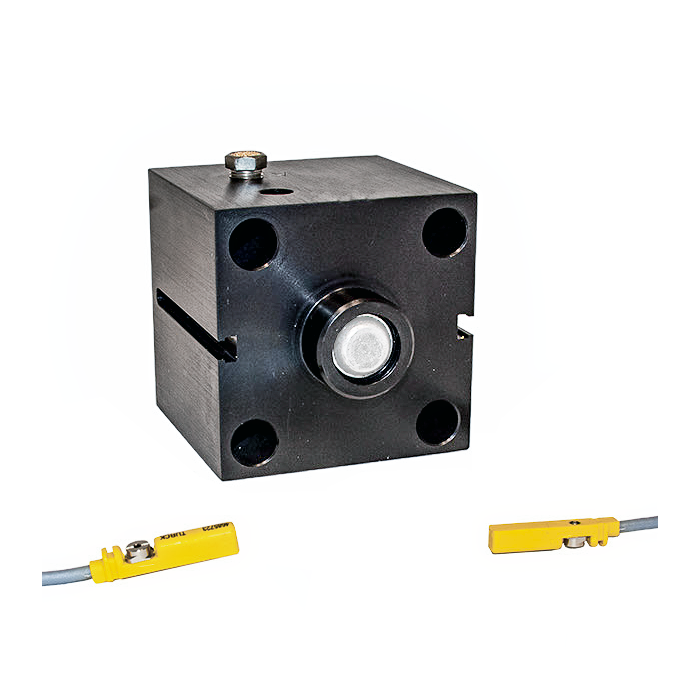

Nexen 966233 Spring Engaged Stand Alone Rod Lock
NexenSpring Engaged Stand Alone Rod Lock
SAFE-RLSSB*600-138-S-A-MR-2PNP2,SPCL
Safety Rated, Spring Engaged, Imperial Guide Rod Mount, Sensor Slot, Manual Release
Application Considerations: Spring Engaged, Manual Release, Low Backlash, IP67 Rated, No Rod Displacement On Engagement, Compact, NexSafe Certified Safety Product Does Not Include Mounting Bolts Multiple Springs For More Reliable Holding Performance Includes 2 Locking Mode Sensors For Control System Feedback (Engaged Or Disengaged), Shipped Loose Can Be Used For Infrequent Dynamic E-Stops. Multiple Rod Locks Can Be Stacked For Higher Holding Forces.
Length=7.13 in; Rod Diameter=1.375 in
Product Features=Safety Rated, Spring Engaged, Imperial Guide Rod Mount, Sensor Slot, Manual Release; Restrictions=Not For Use In Cyclic Dynamic Stopping Applications, Rod Rotation Not Allowed When Locked, Consult Nexen For Use In Wash-Down Or Humid Applications
- Weight:
- 28.4 lbs
- Mounting Style:
- Stand Alone
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- < 0.008 in
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Anodized
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 33 °F
- Max Ambient Temperature:
- 150 °F, Continuous
- Max Intermittent Ambient Temperature:
- 212 °F, Intermittent
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Manual Release Feature:
- Yes
- Manual Release Actuation Torque:
- 135 ftlb, 1/4 Turn Auto Reset
- Approximate Engagement Response Time:
- 175 ms
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Release Pressure:
- 60 psi
- Air Chamber Volume:
- 14.080 in³
- Inlet Size:
- 0.250-18 NPTF
- Cable Length:
- 0.3 m
- Input Power:
- 10-30 VDC
- Sensor Connector:
- M12 x 1.0 Male
- Number of Sensors:
- 2
- Sensor Location:
- Both Sides
- Sensor Frequency:
- ? 1000 Hz
- Linear Holding Force:
- 2830 lbf
- Rod Requirements:
- HRC60 Or Hard Chrome Plated Minimum Of 20 Microns, h8 Tolerance, Roughness 1.6 Microns
- Approximate Life:
- More Than 5000, Manual Releases
- Safety Rating:
- NexSafe Certified
- Materials Of Construction:
- Black Anodized
- Sensor Function:
- Disengagement, Engagement, Engagement or Disengagement
- Sensor 1 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Magneto-Resistive
- Sensor 2 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 2 Output:
- Normally Open PNP
- Sensor 2 Type:
- Magneto-Resistive
- Number of Slots for Operating Mode Sensors:
- 2 Sensor Slots, 2 Sensors included
