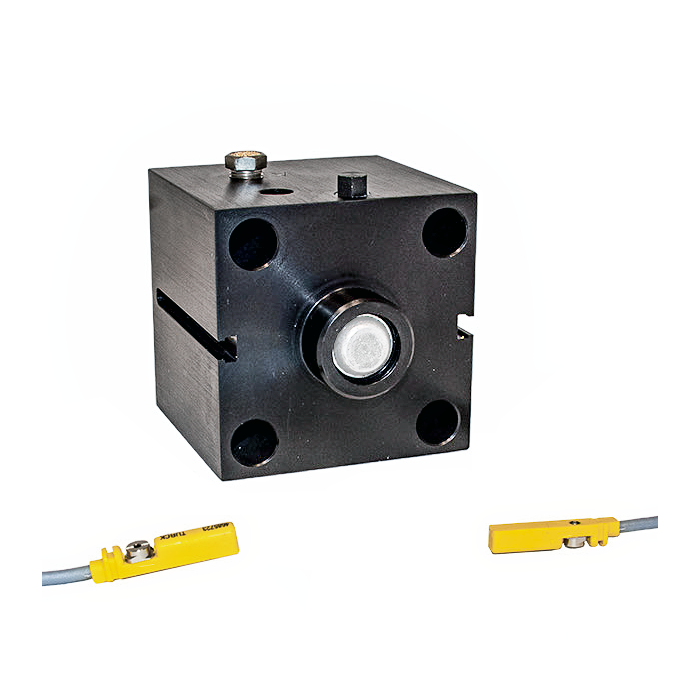

Nexen 966238 Spring Engaged Cylinder Mount Rod Lock
NexenSpring Engaged Cylinder Mount Rod Lock
SAFE-RLSSB*500-138-C-A-MR-2PNP2,SPCL
Safety Rated, Spring Engaged, NFPA Cylinder Mount, Mode Sensor, Manual Release
Configuration Notes: Includes 2 T Slots And Sensors Application Considerations: Spring Engaged, Manual Release, Low Backlash, IP67 Rated, No Rod Displacement On Engagement, Compact, NexSafe Certified Safety Product Includes Sleeve Nut Cylinder Mounting Bolts, Longer Cylinder Rod Required Multiple Springs For More Reliable Holding Performance Includes 2 Locking Mode Sensors For Control System Feedback Can Be Used For Infrequent Dynamic E-Stops. Multiple Rod Locks Can Be Stacked For Higher Holding Forces.
Length=6.50 in; Body Length=5.75 in; Cylinder Size=5.000 in; Rod Diameter=1.375 in
Product Features=Safety Rated, Spring Engaged, NFPA Cylinder Mount, Mode Sensor, Manual Release; Restrictions=Not For Use In Cyclic Dynamic Stopping Applications, Rod Rotation Not Allowed When Locked, Consult Nexen For Use In Wash-Down Or Humid Applications
- Weight:
- 21.75 lbs
- Mounting Style:
- Cylinder
- Engagement Method:
- Spring
- Release Method:
- Air
- Backlash:
- < 0.008 in
- Open Or Enclosed Design:
- Enclosed
- Primary Finish:
- Black Anodized
- Static b10/b10d Cycle Life:
- 1000000/2000000
- Min Ambient Temperature:
- 33 °F
- Max Ambient Temperature:
- 150 °F, Continuous
- Max Intermittent Ambient Temperature:
- 212 °F, Intermittent
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- IEC IP Rating:
- IP67
- Manual Release Feature:
- Yes
- Manual Release Actuation Torque:
- 72 ftlb, 1/4 Turn Auto Reset
- Approximate Engagement Response Time:
- 130 ms
- Max Allowable Pressure:
- 120 psi
- Max Operating Pressure:
- 80 psi
- Min Release Pressure:
- 60 psi
- Air Chamber Volume:
- 9.500 in³
- Inlet Size:
- 0.250-18 NPTF
- Cable Length:
- 0.3 m
- Input Power:
- 10-30 VDC
- Sensor Connector:
- M12 x 1.0 Male
- Number of Sensors:
- 2
- Sensor Location:
- Both Sides
- Sensor Frequency:
- ? 1000 Hz
- Linear Holding Force:
- 1963 lbf
- Rod Requirements:
- HRC60 Or Hard Chrome Plated Minimum Of 20 Microns, h8 Tolerance, Roughness 1.6 Microns
- Approximate Life:
- More Than 5000, Manual Releases
- Safety Rating:
- NexSafe Certified
- Materials Of Construction:
- Black Anodized
- Sensor Function:
- Disengagement, Engagement, Engagement or Disengagement
- Sensor 1 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 1 Output:
- Normally Open PNP
- Sensor 1 Type:
- Magneto-Resistive
- Sensor 2 Function:
- Engagement or Disengagement, Depends on user installation
- Sensor 2 Output:
- Normally Open PNP
- Sensor 2 Type:
- Magneto-Resistive
- Number of Slots for Operating Mode Sensors:
- 2 Sensor Slots, 2 Sensors included
