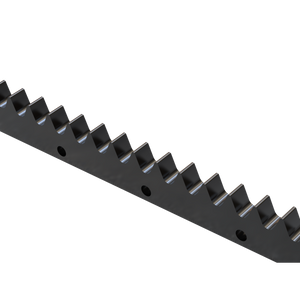

Nexen 966703 Premium Roller Pinion Rack
NexenPremium Roller Pinion Rack
RPS16R-B0464P2R
Premium Grade, High Precision, Zero Backlash, Corrosion Resistant, Lube Free Operation Possible
Configuration Notes: Special Cut Rack on Right End, Must Be Used At Right End Of A Run Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination See Pinion Options Under Accessories
Length=464 mm
Product Features=Premium Grade, High Precision, Zero Backlash, Corrosion Resistant, Lube Free Operation Possible; Restrictions=Cut Ends Must Be At The End Of The Run, Pinion Must Not Cross Cut Points
- Weight:
- 3 lbs
- Primary Finish:
- Dense Hard Chrome
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Product Weight:
- 1.0 kg
- Max Acceleration Thrust:
- 2400 N
- Max Average Thrust:
- 1000 N
- Max Static Linear Force:
- 2400 N
- Positional Accuracy:
- ± 30 µm
- Linear Repeatability:
- ± 5 µm
- Approximate Life:
- More Than 30000000, Roller Contacts Per Tooth At Rated Accuracy And Max Life Ratings
- Materials Of Construction:
- Black Thin Dense Hard Chrome On Steel
- Max Linear Speed:
- 4 m/s
- RPS Size:
- 16
- RPS Width:
- B-Width, Only Compatible with B-Width Roller Pinions
- Backlash Rating:
- Zero Backlash
