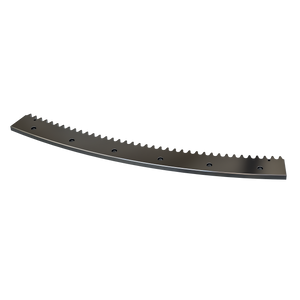

Nexen 966846 Roller Pinion Gear Segment
NexenRoller Pinion Gear Segment
RPS32G-B0342T/020-IP2U
High Precision, Zero Backlash, Gear Segment, Internal Tooth, Lube Free Operation Possible
Application Considerations: The Full Torque Rating Of This Gear Can Only Be Obtained With Pinion 966723 or 966680, Other Pinions Will Be The Limiting Factor On Torque Rating To Assemble Full Segmented Rings An Alignment Tool Is Required For Every Joint, To Join Segments Only One Is Needed Includes Single RPG Gear Segment, See Pinion Options Under Accessories
Length=28.50 in; Outer Diameter=3450 mm; Inner Diameter=3308 mm; Ring Gear Mounting Flange Thickness=24.5 mm
Product Features=High Precision, Zero Backlash, Gear Segment, Internal Tooth, Lube Free Operation Possible; Restrictions=This Gear Can Run Without Lubrication At Speeds Below 2.8 RPM With Some Potential Life Reduction
- Weight:
- 16.25 lbs
- Primary Finish:
- Dense Hard Chrome
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Max Static Torque:
- 32775 Nm
- Max Dynamic Torque At Min Life:
- 18283 Nm
- Max Dynamic Torque For Max Life:
- 10448 Nm
- Product Weight:
- 6.4 kg
- One Way Repeatability:
- ± 0.7 ArcSec
- Angular Backlash:
- 0 ArcSec
- Max Output Speed:
- 32.9 RPM
- Rotational Inertia:
- 17.88 kgm², Per Segment
- Tooth Orientation:
- Internal Teeth
- Approximate Life:
- More Than 30000000, Roller Contacts Per Tooth At Rated Accuracy And Max Life Ratings
- Gear To Pinion Ratio:
- 28.5 :1
- Full Ring Possible:
- Can Create Full Ring
- Gear Or Segment Angle:
- 20 °
- Materials Of Construction:
- Black Thin Dense Hard Chrome On Steel
- One Way Positional Accuracy:
- ± 3.7 ArcSec
- RPS Size:
- 32
- RPS Width:
- B-Width, Only Compatible with B-Width Roller Pinions
- Backlash Rating:
- Zero Backlash
