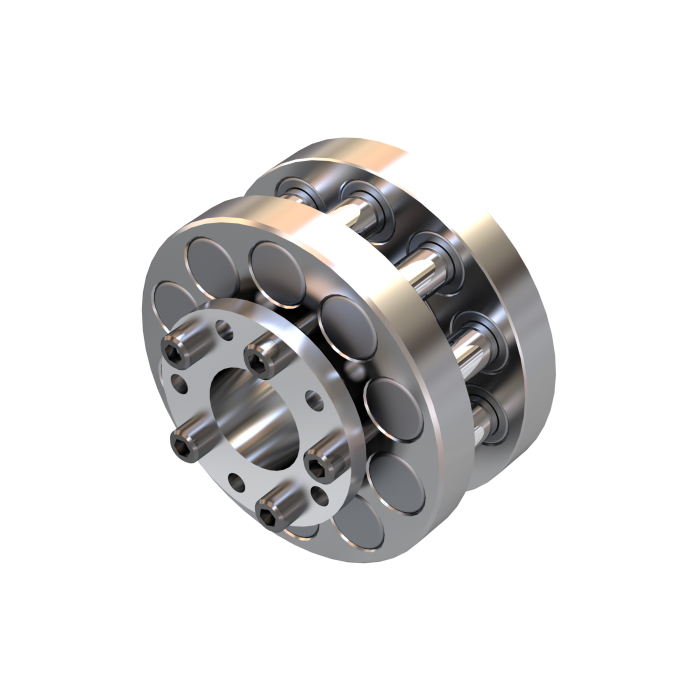

Nexen 966869 Shaft Mount Roller Pinion
NexenShaft Mount Roller Pinion
RPS25P-B030.00MMP3,SPCL
High Precision, Zero Backlash, Shaft Mount, Keyless Compression Coupling
Configuration Notes: Special With Krytox LVP Bearing Grease For Vacuum Environment Applications (Not Validated, Customer Assumes Bearing Failure Risk) Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination
Length=67.5 mm; Body Length=49.5 mm; Outer Diameter=101.0 mm; Bore Size=30 mm; Distance Per Revolution=250 mm; Meshing Pitch Circle Diameter=79.6 mm
Product Features=High Precision, Zero Backlash, Shaft Mount, Keyless Compression Coupling
- Weight:
- 5 lbs
- Max Speed:
- 1820 RPM
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight Keyless Bore With Mechanical Compression Coupling
- Max Dynamic Torque:
- 159.2 Nm
- Max Static Torque:
- 175.1 Nm
- Max Dynamic Torque At Min Life:
- 159.2 Nm
- Max Dynamic Torque For Max Life:
- 89.5 Nm
- Max Acceleration Thrust:
- 4000 N
- Max Average Thrust:
- 2200 N
- Max Static Linear Force:
- 4400 N
- Rotational Inertia:
- 0.00255 kgm²
- Materials Of Construction:
- Nickel Plated Steel Body Zinc-Nickel Plated Coupling And Bearing Cups Zinc Plated Fasteners Bare Steel Rollers
- Max Linear Speed:
- 8 m/s
- Pinion Mounting Style:
- Shaft Mount
- RPS Size:
- 25
- RPS Width:
- B-Width, Only Compatible with B-Width Racks or Gears
- Backlash Rating:
- Zero Backlash
