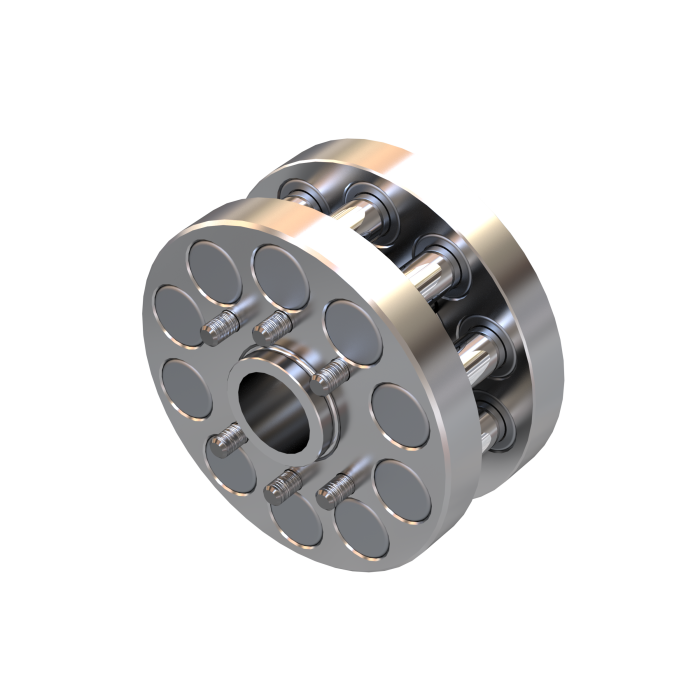

Nexen 966894 Flange Mount Roller Pinion
NexenFlange Mount Roller Pinion
RPS32P-BISO063.00MMP3,SPCL
High Precision, Zero Backlash, Flange Mount
Configuration Notes: Special Bolt Pattern For Alpha/Wittenstein TP+ 025MA Reducer Total System Performance Will Be The Lesser Of The Pinion And Rack Or Gear Combination
Length=77.9 mm; Body Length=68.5 mm; Outer Diameter=148.0 mm; Pilot Size=ISO-9409 Inner Pilot 39.995 mm, See Gearhead Fitment Table In Technical Data Sheet In Left Column; Input Bolt Circle Diameter=63.0 mm; Input Bolt Hole Size=M8-1.25 mm, 12 Holes @ 30°; Distance Per Revolution=384 mm; Meshing Pitch Circle Diameter=122.2 mm
Product Features=High Precision, Zero Backlash, Flange Mount
- Weight:
- 14.5 lbs
- Max Speed:
- 938 RPM
- Primary Finish:
- Nickel Plated
- Min Ambient Temperature:
- -5 °C
- Max Ambient Temperature:
- 40 °C
- CE Certified:
- CE
- RoHS Compliant:
- RoHS
- Bore Details:
- Straight For Pass Through, Not For Mounting
- Max Dynamic Torque:
- 385.0 Nm
- Max Static Torque:
- 440.0 Nm
- Max Dynamic Torque At Min Life:
- 385.0 Nm
- Max Dynamic Torque For Max Life:
- 218.7 Nm
- Max Acceleration Thrust:
- 6300 N
- Max Average Thrust:
- 3600 N
- Max Static Linear Force:
- 7200 N
- Rotational Inertia:
- 0.0168 kgm²
- Approximate Life:
- 60000000, Contacts Per Roller Or Full Revolutions At Max Life Rated Performance, See Tech Data Sheet For Full Info
- Materials Of Construction:
- Nickel Plated Steel Body Zinc-Nickel Plated Bearing Cups Zinc Plated Fasteners Bare Steel Rollers
- Max Linear Speed:
- 6 m/s
- Pinion Mounting Style:
- ISO-9409 Flange Mount
- RPS Size:
- 32
- RPS Width:
- B-Width, Only Compatible with B-Width Racks or Gears
- Backlash Rating:
- Zero Backlash
