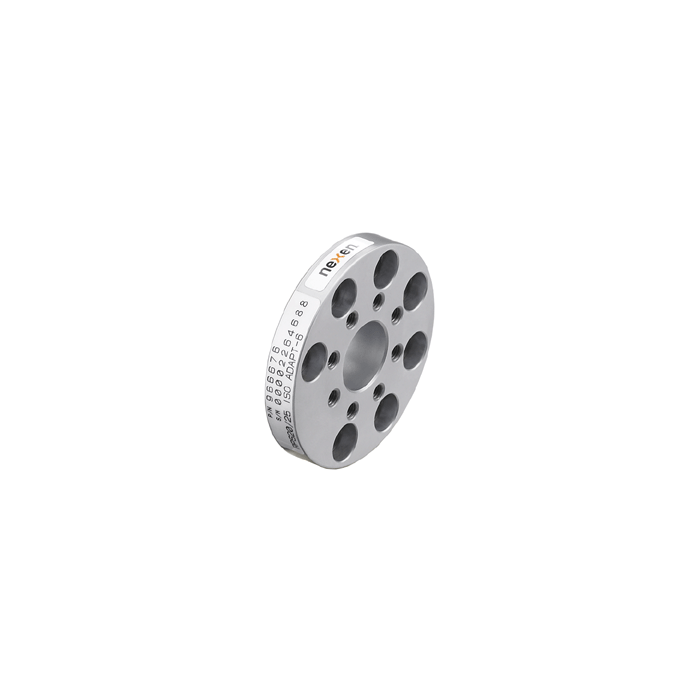

Nexen 967004 Pinion Flange Adapter

Nexen 967004 Pinion Flange Adapter

Nexen
SKU:
967004
Availability:
Contact us to confirm availability and lead times.
$985.00
Condition:
New
Current Stock:
Description

Pinion Flange Adapter



RPS40/4014ISOADAPT3,HT

ISO-9409 Compatible

Configuration Notes: This Adapter Is Only For The High Torque RPS40 Pinions That Can Only Be Mated To The Next Larger ISO9409 Frame Size Application Considerations: Carefully Evaluate The Pinion Reducer Combination When Using Upsizing Adapters, Make Sure Pinion Torque Is Not Exceeded This Adapter Allows The RPS40 ISO-9409 Pinion To Adapt To The Flange A RPS4014 Pinion Would Directly Fit Includes The Bolts To Attach The Adapter To The ISO-9409 Gearhead Flange

Length=7.00 in; Pilot Size=Female 50 mm, (Pinion Side) Male 80 mm (Reducer Side)

Product Features=ISO-9409 Compatible
Additional Information
Weight:
6.39 lbs
Primary Finish:
Nickel Plated
CE Certified:
CE
RoHS Compliant:
RoHS
IEC IP Rating:
0
Manufacturer:
Alpha, Apex, Mijno, Neugart, SEW-Euro, Shimpo, Stober, Sumitomo
Series:
TP110,AD200,BDB250,PLPN200,EVT200,PSBF72#,PH?82#
Materials Of Construction:
Adapter Flange Nickel Plated Mounting Bolts Zinc Plated
