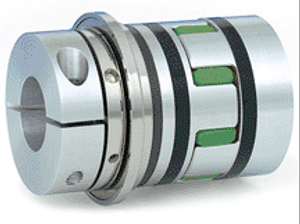

Nexen 975732-113 MTL Mechanical Torque Limiter MTL150-ECC-SP-1.000-1.000-45/150
Nexen
$1,917.00
MTL Mechanical Torque Limiter MTL150-ECC-SP-1.000-1.000-45/150
| If You Don't See Exactly What You Need Refer To The Technical Data Sheet In The Left Hand Column Of This Page For The Range Of Options | |
| Features: | See Technical Data Sheet Under Resources In Left Column For Ordering Details |
| Comments: | Can Be Adjusted While Installed With Index Gage And Spanner Wrench Listed Under Accessories To The Left |
| Comments: | This Unit Automatically Reengages Once The Problem Is Corrected |
| Open Or Enclosed Design: | Open |
| Drive Arrangement: | Coupling |
| Bore Size: | 1.000/1.000 in. |
| Input Keyway: | None |
| Bore Style: | "Straight, No Keyways" |
| Maximum Static Clutch Torque: | 150 Nm |
| Minimum Static Clutch Torque: | 45 Nm |
| Torque Range: | 45 - 150 Nm |
| Factory Torque Setting: | 113 Nm |
| Backlash: | 0.00 ArcSec |
| Number Of Engagement Positions: | 1 |
| Shaft Inertia: | 16.00 kgcm² |
| Max Rpm: | 3200 |
| Mounting Style: | Clamp Collars Without Keyways |
| Temperature Range: | "-30 - 120 °C Nominal, 150 °C Intermittent Peak" |
| Coupling Brand/Type: | Elastomer Insert |
| Maximum Angular Misalignment: | 0.8° |
| Maximum Axial Float From Initial Spacing: | ± 2.00 mm |
| Maximum Lateral Misalignment: | 0.12 mm |
| Torsional Rigidity: | "10,600 Nm/Rad" |
| Ratings: | "CE, And RoHS" |
| Finish: | "Bare Aluminum And Black Oxide, Corrosion Resistant Per DIN 50021 Salt 140 Hours, Or Stainless Steel" |
| "Options Available: Bore Size, Keyway, Torque Range, Factory Torque Setting, # Of Engagemet Positions, Sealed, And Stainless Steel" | |
| Shipping Weight: | 4.8 LB |
