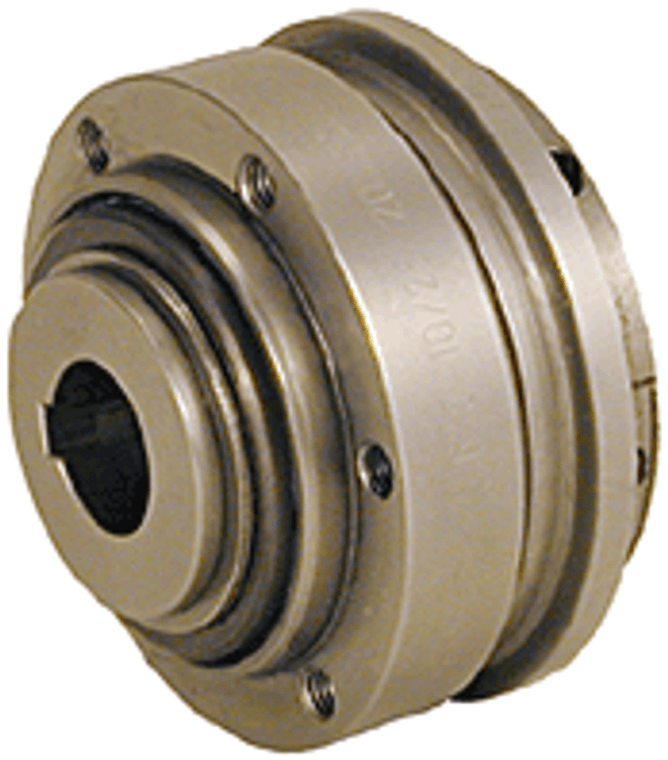

MTL Mechanical Torque Limiter MTL500-PMK-SP-1.000-80/200
View AllClose
If You Don't See Exactly What You Need Refer To The Technical Data Sheet In The Left Hand Column Of This Page For The Range Of Options | |
Features: | "High Performance, Zero Backlash, Adjustable, Mechanical Torque Limiter" |
Comments: | Can Be Adjusted While Installed With Index Gage And Spanner Wrench A55012 Provided By www.jwwinco.com http://bit.ly/2YNWR9V |
Comments: | Double Bearing Support For Pulleys And Sprockets |
Open Or Enclosed Design: | Open |
Drive Arrangement: | Pilot Mount |
Bore Size: | 1.000 in. |
Input Keyway: | None |
Bore Style: | "Straight, Keyed" |
Pilot Size: | 90 mm |
Pilot Or Drive Flange Bolt Circle Data: | "6, M8-1.25 Holes @ 60° On A 100 mm Bolt Circle" |
Pilot Maximum Radial Load: | 5600 N |
Maximum Static Clutch Torque: | 200 Nm |
Minimum Static Clutch Torque: | 80 Nm |
Torque Range: | 80 - 200 Nm |
Factory Torque Setting: | 80 Nm |
Backlash: | 0.00 ArcSec |
Number Of Engagement Positions: | 1 |
Minimum Sprocket Size: | "50/37T, 60/31T, 80/27T, 100/22T, 120/18T" |
Shaft Inertia: | 86.00 kgcm² |
Max Rpm: | 2200 |
Mounting Style: | Straight Bore With Keyway |
Temperature Range: | "-30 - 120 °C Nominal, 150 °C Intermittent Peak" |
Ratings: | "CE, And RoHS" |
Finish: | "Bare Aluminum And Black Oxide, Corrosion Resistant Per DIN 50021 Salt 140 Hours, Or Stainless Steel" |
"Options Available: Bore Size, Keyway, Torque Range, Factory Torque Setting, # Of Engagemet Positions, Sealed, And Stainless Steel" | |
Shipping Weight: | 10.8 LB |
