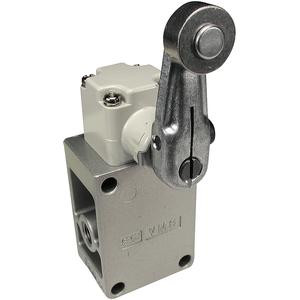

SMC NVM830-N01-00 Mechanical Valve
- SKU:
- NVM830-N01-00
- Condition:
- New
- Availability:
- In stock: 623
- Actuator Type:
- Basic Style
Description
NVM800, 800 Series, 3 Port Mechanical Valve, North American
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.
-
- Fluid: air- Operating pressure: -100kPa to 1.0MPa
- Effective area (Cv): 6mm 2 (0.33)
- Ambient and fluid temperature: -5 to 60 C (no freezing)
- Port size (nominal size): 1/8 (6A)
- North American threads (NPT)
-
