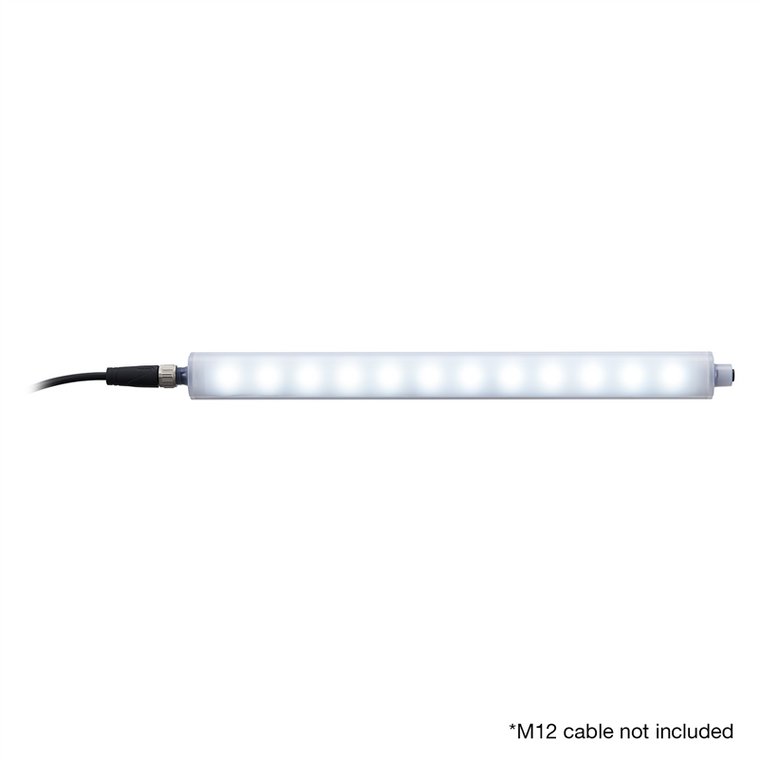

Patlite CLA3-02CLN-C LED Work Light, 300mm, 24V DC, Daylight, 6500K, M12 Daisy-Chain Connectors, ECOLAB Tested, IP66/IP67/IP69K
Patlite
$253.00
The Patlite CLA3-02CLN-C is a 300mm hygienic LED work light from the CLA-02 series, engineered for control panels, food and beverage processing, pharmaceutical facilities, and semiconductor cleanrooms where washdown durability and clean-surface design are mandatory. The seamless milky-white polycarbonate housing delivers uniform daylight illumination across a 120° area at 6500K, with a 65% luminous flux increase and 71% illuminance increase compared to prior CLA-A models. Rated IP66/IP67/IP69K with verified resistance to high-pressure/high-temperature washdown up to 80°C, hydrogen peroxide spray sterilization, and common alkaline, acidic, chlorine-based, and neutral cleaning agents (Topaz MD6, Topactive 500, P3-Topax 66, Topactive OKTO, P3-Topax 990 all tested with the SUS SZW-304 bracket). The unit has passed ECOLAB evaluation testing and operates from 40°C to +60°C, making it compatible with cold storage and deep-clean environments. Connection is via 4-pin M12 connectors configured for daisy-chain wiring between multiple fixtures, allowing rapid installation and reducing wiring errors. Includes one pair of SZW-301 rear screw-mount polycarbonate brackets. 24V DC input, CE and RoHS compliant.
- Model Series:
- CLA-02
- Size:
- 300mm
