Patlite CLK1-02JSN-CP LED Work Light, 100mm, 24V DC, Daylight 6500K, Spot Lens, Cable, IP66G/IP67G/IP69K, Oil-Resistant
Patlite
$277.00

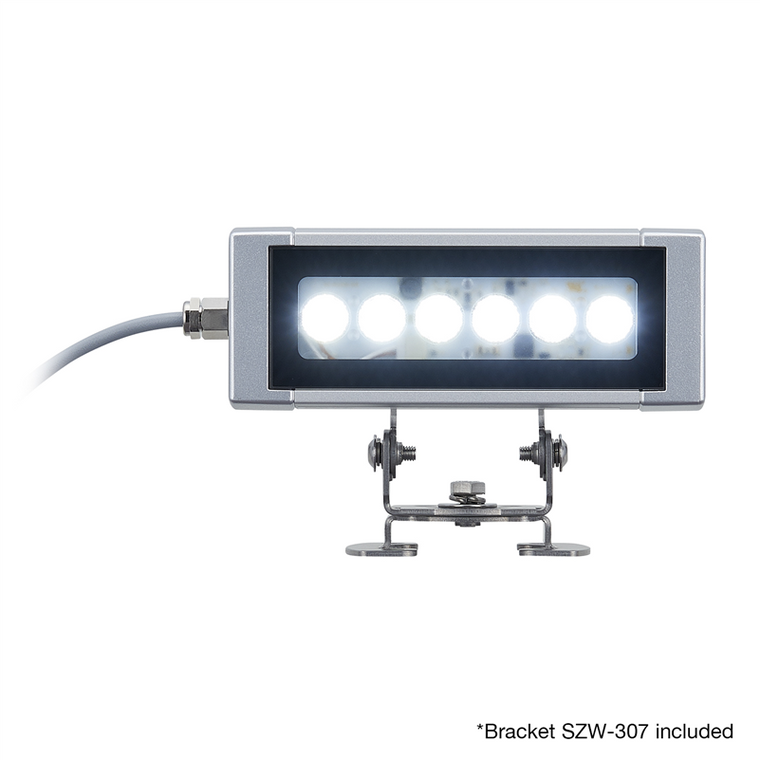

The Patlite CLK1-02JSN-CP is a 100mm oil-resistant LED work light from the CLK-02 series, engineered for machine tool interiors, CNC lathes, machining centers, and EDM equipment where coolant, cutting fluid, and metal chips are present. The robust aluminum housing and reinforced glass lens deliver daylight 6500K illumination with Ra80 color rendering for natural color on workpieces and tooling. The spot lens provides a focused 32° beam angle for precise illumination of specific work areas. Rated IP66G/IP67G per JIS C0920 (Grade G ensures no oil drops or mist can penetrate from any direction) and IP69K for high-pressure/high-temperature washdown, the CLK-02 is validated with Patlite's proprietary 240-hour (10-day) water-soluble oil immersion test. Low-heat thermal design extends LED life, and connection is via a 3m pre-wired cable for fast installation. Includes the SZW-307 SUS pan-tilt bracket (180° pan / 120° tilt adjustment) for precision aiming on spotlight applications. 24V DC input, CE and RoHS compliant.
- Model Series:
- CLK-02
- Size:
- 100mm
