Patlite CLK6-02CSN-C 600mm Oil-Resistant Light | ADI

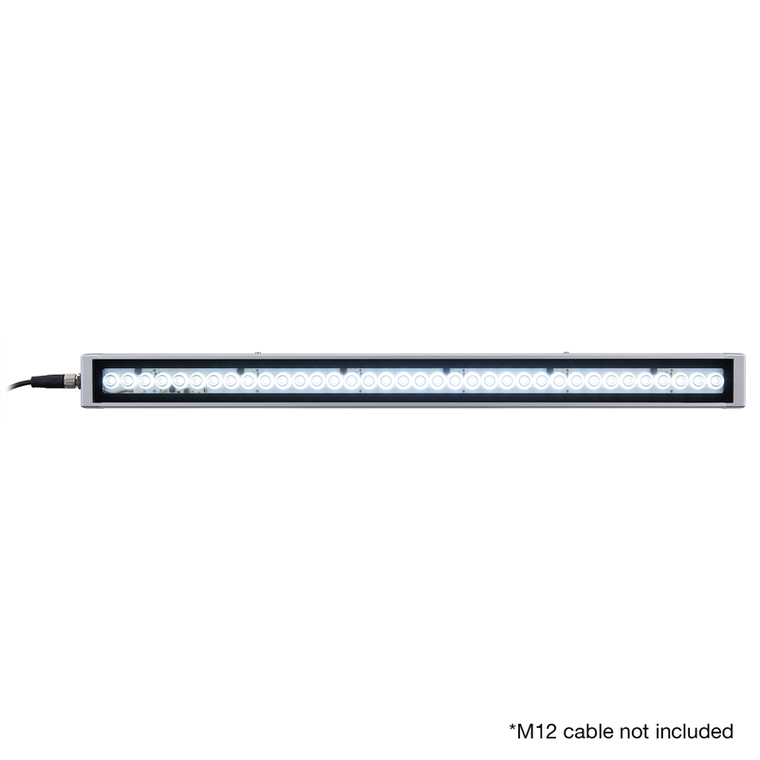

Patlite CLK6-02CSN-C LED Work Light, 600mm, 24V DC, Daylight 6500K, M12 Connector, IP66G/IP67G/IP69K, Oil-Resistant

Patlite
SKU:
CLK6-02CSN-C
Availability:
Factory stock
$546.00
Condition:
New
Current Stock:
Description
The Patlite CLK6-02CSN-C is a 600mm oil-resistant LED work light from the CLK-02 series, engineered for machine tool interiors, CNC lathes, machining centers, and EDM equipment where coolant, cutting fluid, and metal chips are present. The robust aluminum housing and reinforced glass lens deliver daylight 6500K illumination with Ra80 color rendering for natural color on workpieces and tooling. The standard lens provides broad, uniform illumination across the machine interior. Rated IP66G/IP67G per JIS C0920 (Grade G ensures no oil drops or mist can penetrate from any direction) and IP69K for high-pressure/high-temperature washdown, the CLK-02 is validated with Patlite's proprietary 240-hour (10-day) water-soluble oil immersion test. Low-heat thermal design extends LED life, and connection is via 2-pin M12 connector for fast installation. Includes rear-mount brackets (2 units) to support the 600mm length. 24V DC input, CE and RoHS compliant.
Additional Information
Model Series:
CLK-02
Size:
600mm
