Patlite LR4-102LJNU-G LR4 40mm LED Signal Tower, 1-Tier Green, 24V DC, Pole Mount with L-Bracket, 3m cable, Silver, IP54
Patlite
$136.00

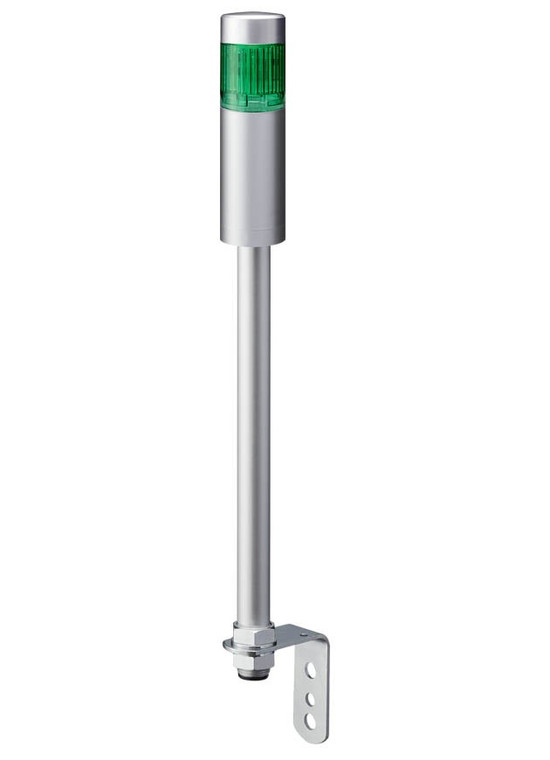

The Patlite LR4-102LJNU-G is a 1-tier 40mm diameter, 24V DC Signal Tower with L-bracket pole mount, 3m cable, IP54, Silver body, Green LED. Signal towers give operators, maintenance staff and supervisors an at-a-glance view of machine status from across the floor.
Key Features
- 1 tier: Green
- 24V DC supply
- Pole Mount with L-Bracket
- 3m cable
- IP54 protection rating (per Patlite)
- Silver body
Specifications
| Part Number | LR4-102LJNU-G |
| Series | LR4 |
| Type | LED Signal Tower |
| Diameter | 40mm |
| Tiers | 1 |
| LED Color | Green |
| Voltage | 24V DC |
| Mounting | Pole Mount with L-Bracket |
| Connection | 3m cable |
| Body Color | Silver |
| Protection Rating | IP54 |
| Dimensions (L x W x H) | 40 x 40 x 424mm |
| Unit Weight | 0.645kg |
| Special Order | No |
Related Patlite Parts
- LR4-E-B 40mm diameter Blue LED unit for LR4 Signal Tower
- LR4-E-BZ 40mm diameter Blue LED unit with clear lens for LR4 Signal Tower
- LR4-BU 40mm diameter Buzzer module for LR4 Signal Tower; Silver
- LR4-BW 40mm diameter Buzzer module for LR4 Signal Tower; Off-white
- B22210159-7F1 Pole Bracket for LR4 Off-White
- B22210159-9F1 Pole Bracket for LR4 Silver
Need help choosing the right Patlite configuration? Automation Distribution is an authorized Patlite distributor. Our team can help with configuration, mounting hardware, voltage selection and replacement parts. Contact Automation Distribution
