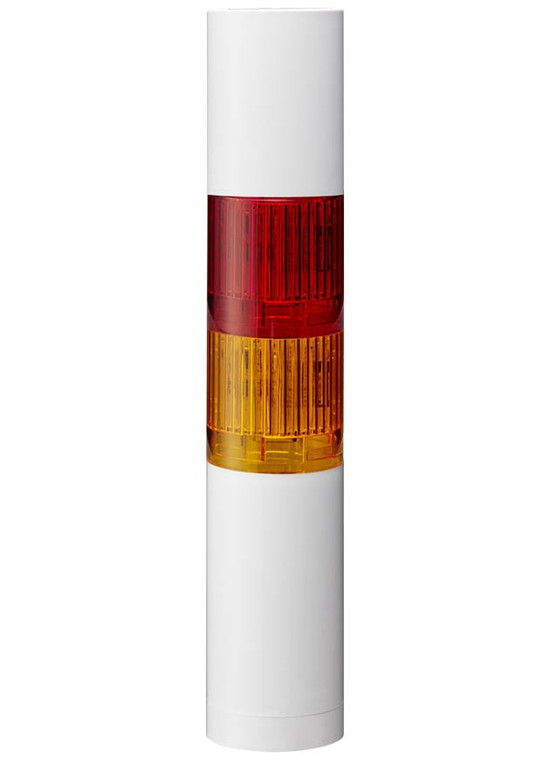

Patlite LR4-202WJBW-RY LR4 40mm LED Signal Tower, 2-Tier Red/Amber, 24V DC, Direct Mount, 3m cable, Buzzer, Off-white, IP65
Patlite
$163.00
The Patlite LR4-202WJBW-RY is a 2-tier 40mm diameter, 24V DC Signal Tower for direct mount with 3m cable, IP65, Off-white body, Flashing/Buzzer unit, Red and Amber LED. Signal towers give operators, maintenance staff and supervisors an at-a-glance view of machine status from across the floor.
Key Features
- 2 tiers: Red, Amber
- Flashing light
- 24V DC supply
- Direct Mount
- 3m cable
- IP65 protection rating (per Patlite)
- Off-white body
- Integrated buzzer
Specifications
| Part Number | LR4-202WJBW-RY |
| Series | LR4 |
| Type | LED Signal Tower |
| Diameter | 40mm |
| Tiers | 2 |
| LED Colors | Red, Amber |
| Light Function | flashing |
| Voltage | 24V DC |
| Mounting | Direct Mount |
| Connection | 3m cable |
| Body Color | Off-white |
| Protection Rating | IP65 |
| Audible | Buzzer |
| Dimensions (L x W x H) | 40 x 40 x 213.5mm |
| Unit Weight | 0.275kg |
| Special Order | No |
Related Patlite Parts
- LR4-E-B 40mm diameter Blue LED unit for LR4 Signal Tower
- LR4-E-BZ 40mm diameter Blue LED unit with clear lens for LR4 Signal Tower
- LR4-BU 40mm diameter Buzzer module for LR4 Signal Tower; Silver
- LR4-BW 40mm diameter Buzzer module for LR4 Signal Tower; Off-white
- B22210159-7F1 Pole Bracket for LR4 Off-White
- B22210159-9F1 Pole Bracket for LR4 Silver
Need help choosing the right Patlite configuration? Automation Distribution is an authorized Patlite distributor. Our team can help with configuration, mounting hardware, voltage selection and replacement parts. Contact Automation Distribution
