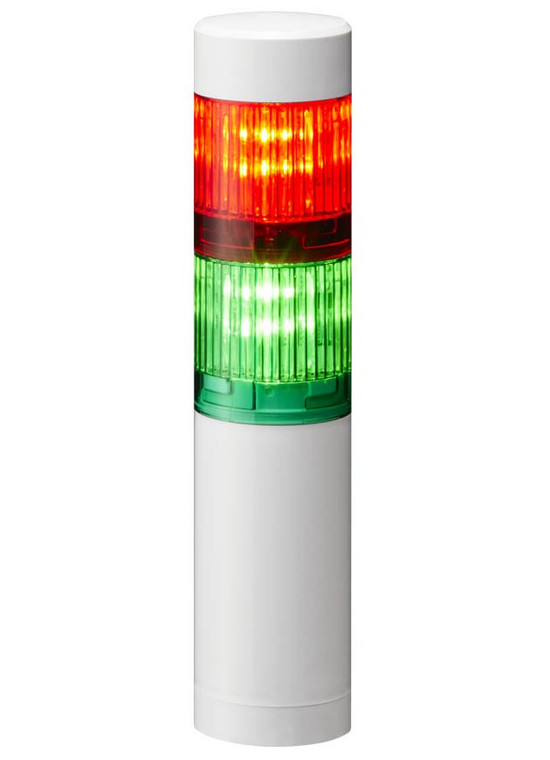

Patlite LR4-202WJNW-RG LR4 40mm LED Signal Tower, 2-Tier Red/Green, 24V DC, Direct Mount, IP65
Patlite
$107.10
The Patlite LR4-202WJNW-RG is a preassembled 2-tier LR4 Series signal tower with a 40mm diameter body and Red and Green LED units. It runs on 24V DC, mounts directly to a machine surface, and is wired with a 3m cable. Patlite rates this configuration IP65.
Key Features
- 2 LED tiers: Red, Green
- 24V DC supply
- Direct Mount, 3m cable
- IP65 protection rating (per Patlite)
- Off-white body
- LR Series modular construction: LED units and the buzzer unit are replaceable
Specifications
| Part Number | LR4-202WJNW-RG |
| Series | LR4 |
| Diameter | 40mm |
| Tiers | 2 |
| LED Colors | Red, Green |
| Voltage | 24V DC |
| Mounting | Direct Mount |
| Connection | 3m cable |
| Flashing/Buzzer Unit | No |
| Protection Rating | IP65 |
| Body Color | Off-white |
| Height | 179mm |
| Unit Weight | 0.24kg |
| Special Order | No |
Related Patlite Parts
- SZK-002W LR4/LR5 Wall Bracket, Off-White
- SZP-090U 1/2" NPT Upper Bracket, LR4/LR5
- B32310070-7F1 LR4 Head Cover, Off-White
- B25110065-F1 LR4 O-Ring, 5 Pack
- LR4-BW LR4 40mm Buzzer Unit, 24V DC
Need help choosing the right Patlite configuration? Automation Distribution is an authorized Patlite distributor. Our team can help with tower configuration, mounting hardware, voltage selection and replacement parts. Contact Automation Distribution
