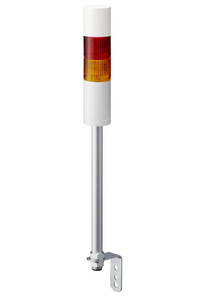

Patlite LR5-201LJBW-RY LR5 50mm LED Signal Tower, 2-Tier Red/Amber, 12V DC, Pole Mount with L-Bracket, 3m cable, Buzzer, Off-white, IP54
Patlite
$229.00
The Patlite LR5-201LJBW-RY is a 2-tier 50mm diameter, 12V DC Signal Tower with L-bracket pole mount, 3m cable, IP54, Off-white body, Flashing/Buzzer unit, Red and Amber LED. Signal towers give operators, maintenance staff and supervisors an at-a-glance view of machine status from across the floor.
Key Features
- 2 tiers: Red, Amber
- Flashing light
- 12V DC supply
- Pole Mount with L-Bracket
- 3m cable
- IP54 protection rating (per Patlite)
- Off-white body
- Integrated buzzer
Specifications
| Part Number | LR5-201LJBW-RY |
| Series | LR5 |
| Type | LED Signal Tower |
| Diameter | 50mm |
| Tiers | 2 |
| LED Colors | Red, Amber |
| Light Function | flashing |
| Voltage | 12V DC |
| Mounting | Pole Mount with L-Bracket |
| Connection | 3m cable |
| Body Color | Off-white |
| Protection Rating | IP54 |
| Audible | Buzzer |
| Dimensions (L x W x H) | 50 x 50 x 498.5mm |
| Unit Weight | 0.62kg |
| Special Order | No |
Related Patlite Parts
- LR5-E-B 50mm diameter Blue LED unit for LR5 Signal Tower
- LR5-E-BZ 50mm diameter Blue LED unit with clear lens for LR5 Signal Tower
- LR5-BK 50mm diameter Buzzer module for LR5 Signal Tower; Black
- LR5-BU 50mm diameter Buzzer module for LR5 Signal Tower; Silver
- B22210160-7F1 Pole Bracket for LR5 Off-White
- B22210160-8F1 Pole Bracket for LR5 Black
Need help choosing the right Patlite configuration? Automation Distribution is an authorized Patlite distributor. Our team can help with configuration, mounting hardware, voltage selection and replacement parts. Contact Automation Distribution
