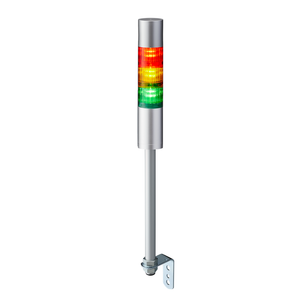

Patlite LR5-302SEBW-RYG 3-Tier 50mm LR5-LAN Signal Tower, Modbus/TCP & HTTP(S), Short L-Bracket Pole Mount, 24V DC, Off-White Body, Red, Amber, Green LED + Buzzer, IP54

The Patlite LR5-302SEBW-RYG is part of the LR5-LAN ?50mm Ethernet-connected signal tower series, purpose-built for smart factories, Industry 4.0 deployments, and industrial IoT environments where machine status indication needs to integrate directly with the factory network rather than through discrete PLC I/O. The LR5-LAN standard LAN variant supports Modbus/TCP, HTTP(S), and socket communication over the built-in RJ-45 port, with a web-server configuration screen that generates control commands directly from the browser. Sample source code for Windows and Linux is available from Patlite to accelerate integration with industrial PCs, SCADA platforms, and custom MES applications. The short short L-bracket pole-mount configuration uses a compact L-bracket with a shorter pole, optimized for tight installations where a full pole-mount tower won't fit but some elevation above the machine surface is still required. IP54. The off-white polycarbonate body houses the re-designed LR-series lens for bright, even 360° light output visible from long distances, and carries a rugged construction suitable for industrial installations. The 3-tier configuration is pre-assembled with the color sequence shown, while the 'Twist and Lock' modular design allows tiers to be swapped, added, or replaced in the field without rewiring. LEDs are stacked from top to bottom in the following order: Red, Amber, Green. The integrated buzzer module produces an 85dB omni-directional audible alert at 1 meter. Operates on 24V DC and is built on Patlite's 'Twist and Lock' modular platform, compatible with the full LR5-E LED module lineup. CE compliant.
