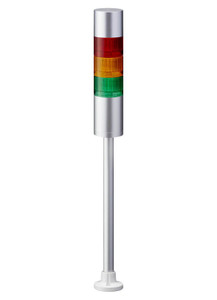

Patlite LR6-3M2WJBW-RYG LR6 60mm LED Signal Tower, 3-Tier Red/Amber/Green, 100-240V AC, Direct Mount, 3m cable, Buzzer, Off-white, IP65
Patlite
$241.00
The Patlite LR6-3M2WJBW-RYG is a 3-tier 60mm diameter,100-240V AC Signal Tower for direct mount with 3m cable, IP65, Off-white body, Flashing/Buzzer unit, Red, Amber, Green LED. Signal towers give operators, maintenance staff and supervisors an at-a-glance view of machine status from across the floor.
Key Features
- 3 tiers: Red, Amber, Green
- Flashing light
- 100-240V AC supply
- Direct Mount
- 3m cable
- IP65 protection rating (per Patlite)
- Off-white body
- Integrated buzzer
Specifications
| Part Number | LR6-3M2WJBW-RYG |
| Series | LR6 |
| Type | LED Signal Tower |
| Diameter | 60mm |
| Tiers | 3 |
| LED Colors | Red, Amber, Green |
| Light Function | flashing |
| Voltage | 100-240V AC |
| Mounting | Direct Mount |
| Connection | 3m cable |
| Body Color | Off-white |
| Protection Rating | IP65 |
| Audible | Buzzer |
| Dimensions (L x W x H) | 60 x 60 x 323.5mm |
| Unit Weight | 0.56kg |
| Special Order | No |
Related Patlite Parts
- LR6-E-B 60mm diameter Blue LED unit for LR6 Signal Tower
- LR6-E-BZ 60mm diameter Blue LED unit with clear lens for LR6 Signal Tower
- LR6-BU 60mm diameter Buzzer module for LR6 Signal Tower; Silver
- LR6-BW 60mm diameter Buzzer module for LR6 Signal Tower; Off-white
- B22202089-7F1 LR6 1/2" NPT socket, M30 external threads. White. Comes with WC-Base, O-ring, Gasket
- B22210161-7F1 Pole Bracket for LR6 Off-White
Need help choosing the right Patlite configuration? Automation Distribution is an authorized Patlite distributor. Our team can help with configuration, mounting hardware, voltage selection and replacement parts. Contact Automation Distribution
