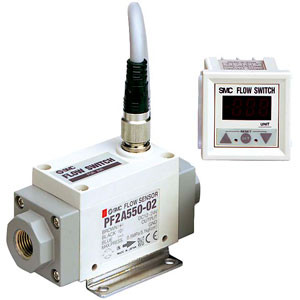

SMC PF2A551-N04-2 Digital Flow Switch, Air, Pf2A, Ifa

(No reviews yet) Write a Review

SKU:: PF2A551-N04-2
Condition:: New
Availability:: In stock: 164
Flow Range:: 51 (50~500 l/min)
Thread:: N (NPT Thread)
Port Size:: 04 (Port Size 1/2)
Wiring Specification:: 3m Lead Wire w/Connector
Output Specification:: 2 (Pulse Output + Analog Output (4~20mA))

$421.00

Current Stock:

Quantity:

Description

Description

PF2A5, Digital Air Flow Sensor, Remote, IP65, 1-500 Lpm

PF2A5 is a digital flow sensor compatible with air and nitrogen. This is the remote version of PF2A7, without a display. The mounting bracket is integrated into the body, while the M12 lead wire is optional. An analog voltage or current output is available. PF2A is IP65 rated, and CE and RoHS compliant. Please consider the PFG digital flow monitor for displaying this sensor s outputs. Also compatible with the PF2A3 and PF2A20 monitors.

- Flow ranges (lpm): 1-10, 5-50, 10-100, 20-200, 50-500
- Port sizes (Rc, NPT, G): 1/8, 1/4, 3/8, 1/2 (flow range dependent)
- Rated pressure range (MPa): -0.05 to 0.5, or-0.05 to 0.75 (flow range dependent)
- Output options: 1-5V or 4-20mA
- Accuracy: 5% F.S.
- Repeatability: 1% F.S.
-

Series Catalog

AutoCAD File
