SMC PF2A711-N03-27 Digital Flow Switch, Air, Pf2A, Ifa

(No reviews yet) Write a Review

SKU:: PF2A711-N03-27
Condition:: New
Flow Rate Range:: 10~100 l/min
Thread:: NPT
Port Size:: Port Size 3/8
Output Specification:: NPN Open Collector 2 Outputs
Wiring Specification:: 3m Lead Wire w/Connector
Unit Specification:: w/Unit Switching Function
Option:: Standard

$510.13

Current Stock:

Quantity:

Description

Description

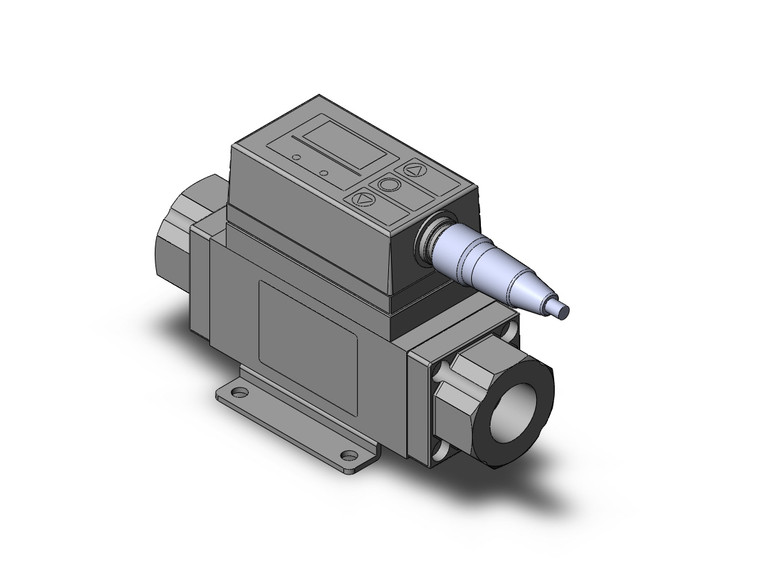

PF2A7, Digital Air Flow Sensor, 2-Color Display, IP65, 1-500 Lpm

PF2A7 is a digital flow sensor compatible with air and nitrogen. This is a legacy sensor, with refreshed feature sets offered by the newer PFMB and PFMC sensors. The 3-digit LED display can show either instantaneous or accumulated flow. The mounting bracket is integrated into the body, while the M12 lead wire is optional. 2 switch outputs are included, with an LED indicator for each located below the display. PF2A is IP65 rated, and CE and RoHS compliant.

- Flow ranges (lpm): 1-10, 5-50, 10-100, 20-200, 50-500
- Port sizes (Rc, NPT, G): 1/8, 1/4, 3/8, 1/2 (flow range dependent)
- Rated pressure range (MPa): -0.05 to 0.75
- Output options: 2 PNP or NPN
- Accuracy: 5% F.S.
- Repeatablility: 1% F.S. or 2% F.S. (flow range dependent)
-
